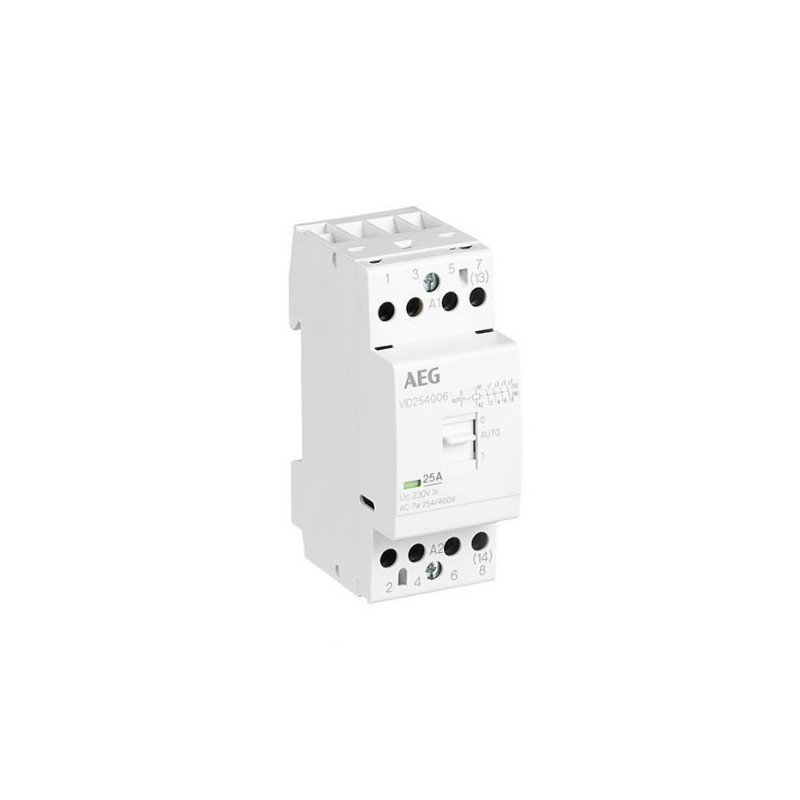

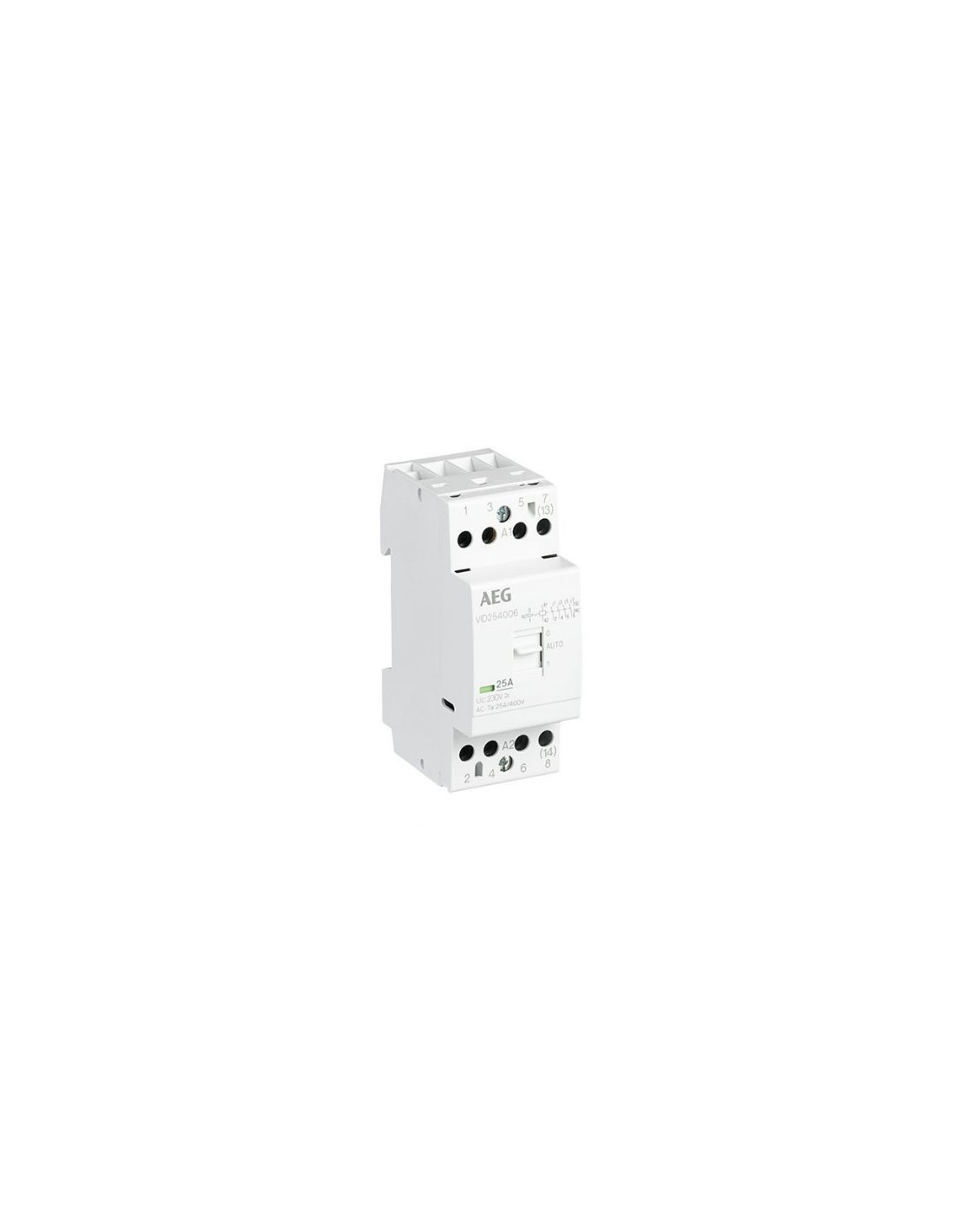

Contactor contactor with manual override 25A 4NO 2modules 230VAC/DC

for switching circuits such as lighting and heating systems or electric motors, fans and pumps.

The specifications indicated "2 DIN modules" refer to the size of the contactor. DIN modules are a standard measurement used for the size of electrical components. One DIN module corresponds to a width of 17.5 mm. Therefore, a 2 DIN module contactor will have a width of 35 mm.

The AEG VID254006 contactor is designed to work with a supply voltage of 230V and a rated current of 40A. It has main contacts for load connection and auxiliary contacts for contactor control and monitoring. It is commonly used in industrial and residential applications for handling power electrical loads.

Technical features
- nominal power supply 220 to 400V
- Voltage type of AC/DC voltage
- Max. compensated parallel fluorescent lamp load 430VA
- IP20 protection
- Operating current 25A
- Number of NO contacts 4
- without buzz
- Number of units step 2
