The BNC male to RCA socket adapter (code 380021050) is designed to facilitate the connection between audio/video equipment that uses BNC connectors and devices that have RCA sockets. This adapter is extremely useful in a variety of applications, such as television broadcasting, the motion picture industry, security system installations, and home theater setups.

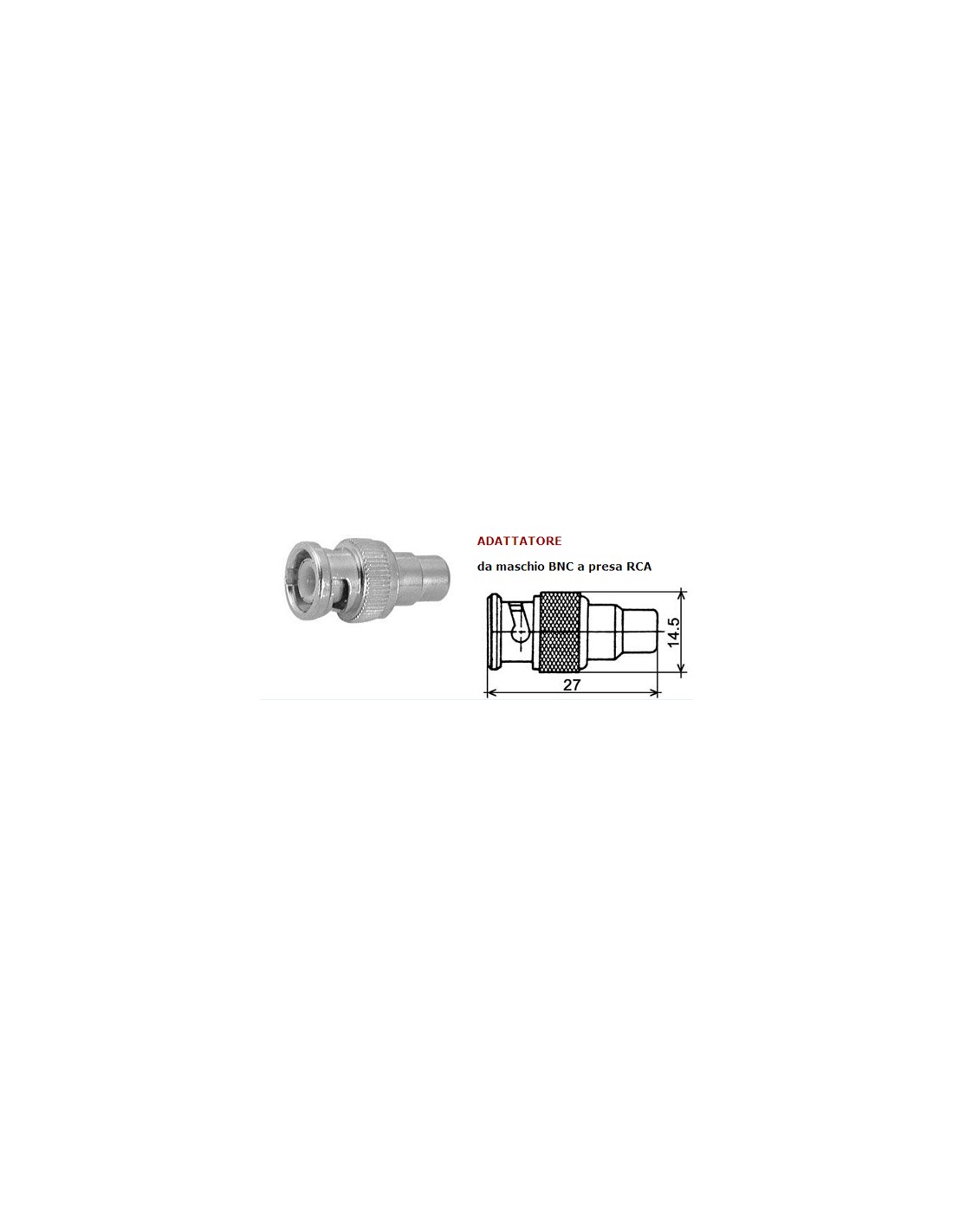

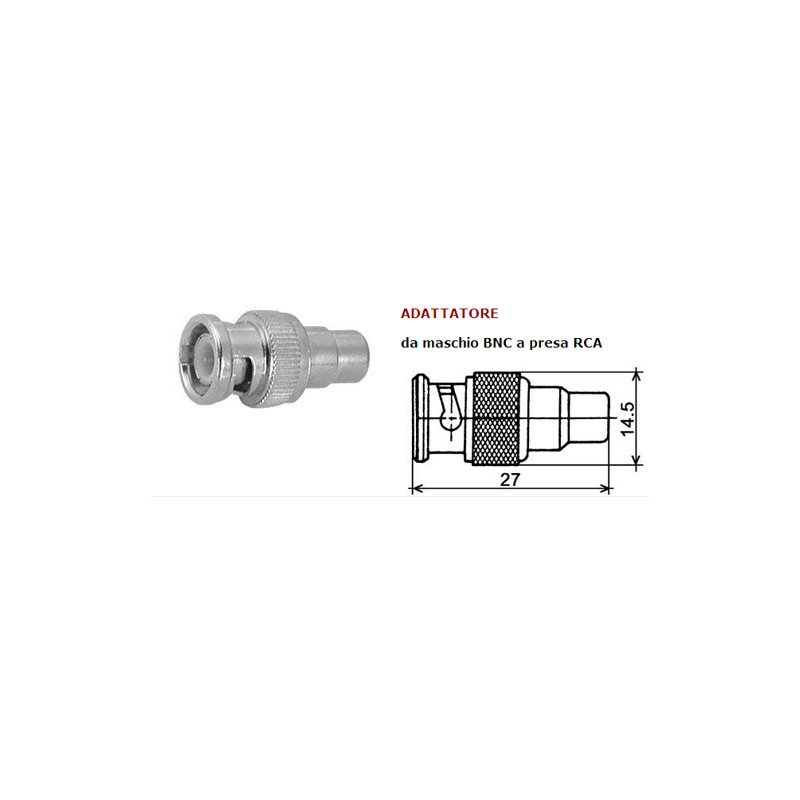

The adapter features a male BNC connector on one end and a female RCA socket on the other. The high quality and robust construction ensures a secure and stable connection, minimizing signal loss and unwanted interference.
Using this adapter is simple: just insert the male BNC connector into the appropriate BNC socket of the equipment and then connect the device with an RCA socket to the female RCA socket of the adapter. In this way, it is possible to transfer audio/video signals from one format to another quickly and reliably.
The BNC male to RCA socket adapter is compatible with a variety of devices including surveillance cameras, monitors, VCRs, professional audio equipment and many other audio/video equipment. Thanks to its versatility, it is an essential tool for installers, videographers and home theater enthusiasts who want reliable, high-quality connections.
In conclusion, the 380021050 BNC male to RCA socket adapter is a key component to facilitate connection between equipment with different types of connectors, allowing a quick and reliable conversion between BNC and RCA. Its high-quality construction and universal compatibility make it a must-have tool for anyone who needs to connect audio/video equipment efficiently and without hassle.
Technical specifications
- body: nickel-plated brass
- insulation: delrin
- impedance: 50w / 75w
- frequency range: 0 - 4 GHz
- maximum applicable voltage: ac 500v
- maximum applicable voltage for 1 minute: ac 1500v
- contact resistance: 2.5 mw max.
- insulation resistance: 5000 mw min. dc 500v
