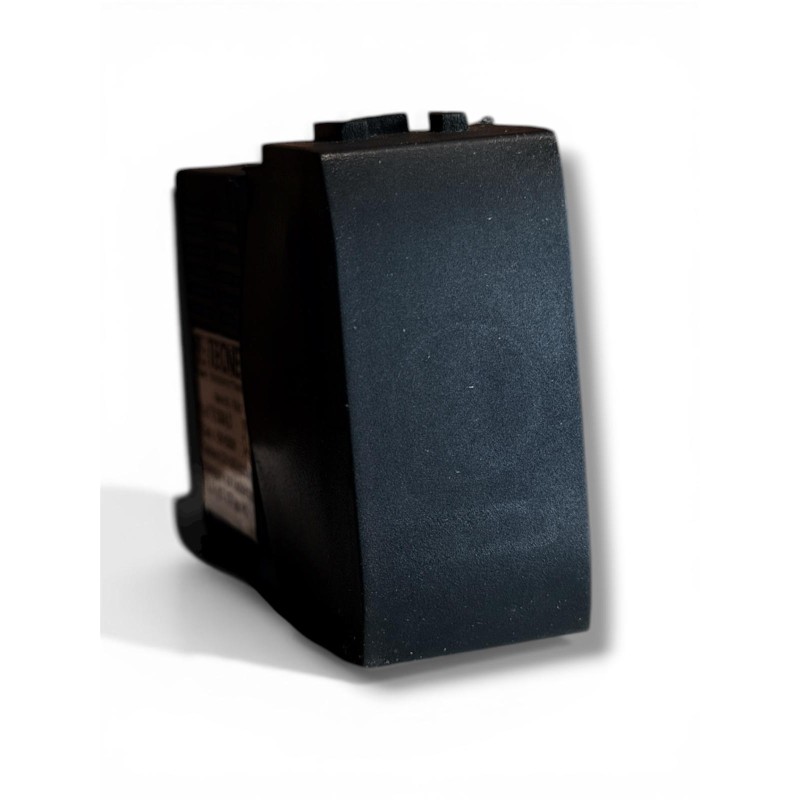

This "static" electronic relay uses semiconductors to drive the load, offering smooth, noise-free switching. It's the perfect component for anyone looking to modernize their electrical system by eliminating noise when switching lights.
The device is rated to operate with a minimum load of 100W: this specification is essential to ensure the electronic circuit remains stable. It is compatible with common NO (Normally Open) buttons of any household electrical series. The static technology not only ensures silence, but also reduces electromagnetic interference, protecting the life of the connected bulbs.
Main Features:
·Silent Operation: Ideal for environments where acoustic comfort is a priority.
·No Mechanical Wear: Thanks to the solid-state electronic components, the service life is drastically longer than mechanical relays.
·Large Load Management: Supports up to 500W of resistive power.
·Easy Installation: Fits easily into junction boxes or behind push buttons (depending on format).
Technical Specifications:
FeatureValue
Static Relay Type (Electronic)
Step-by-Step Function (Sequential ON/OFF)
Minimum Load 100W
Maximum Load 500W
Load Type: Resistive (Incandescent, Halogen 230V)
Power Supply Voltage 230V AC - 50Hz
Command Buttons NA (unlimited)
What can it be used for? (Intended use)
The 500W static relay finds its perfect place in:
0.Bedrooms and Sleeping Areas: To eliminate the noise of the relay clicking that could disturb those sleeping when the light is turned on in a corridor or an adjacent room.
0.Replacement of Diverters and Inverters: Allows you to control a lamp from 3, 4 or more different points using simple buttons, simplifying the electrical wiring.
0.Large Halogen Chandeliers: Specifically designed to manage the ignition of chandeliers or lighting systems that use several halogen or incandescent bulbs, with a combined power of between 100W and 500W.
0.Hotels and Accommodation Facilities: Where silence and durability (zero maintenance on contacts) are fundamental requirements.
TECHNICAL WARNING - IMPORTANT: > This relay requires a minimum load of 100W.
·It is NOT suitable for single LED bulbs or small power loads (e.g. 5W, 10W, 20W), as the relay may remain partially energized or cause flickering.
·Use only with resistive loads (Halogen, Incandescent). To control low-power LEDs, a specific LED relay or mechanical relay contact is required.
