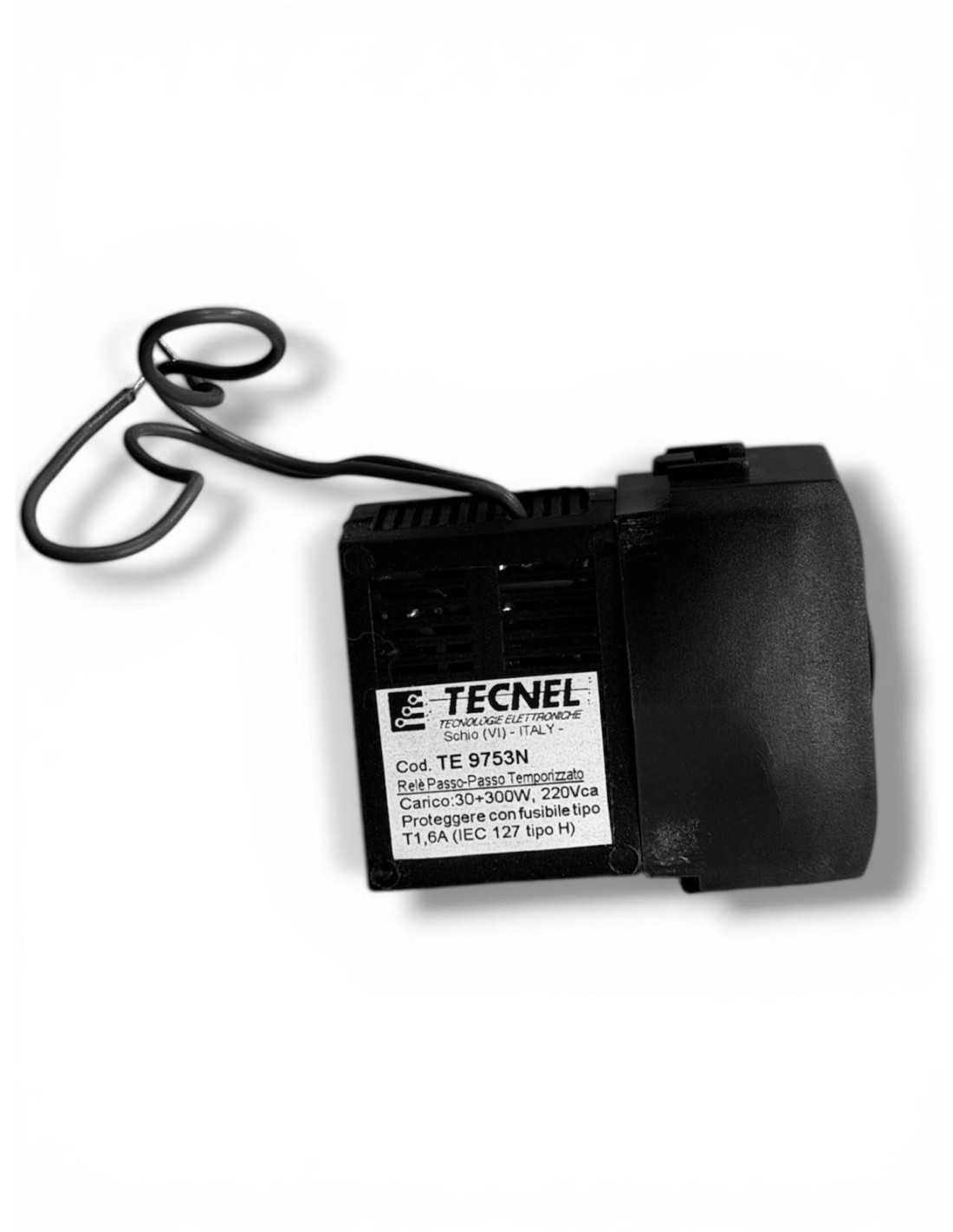

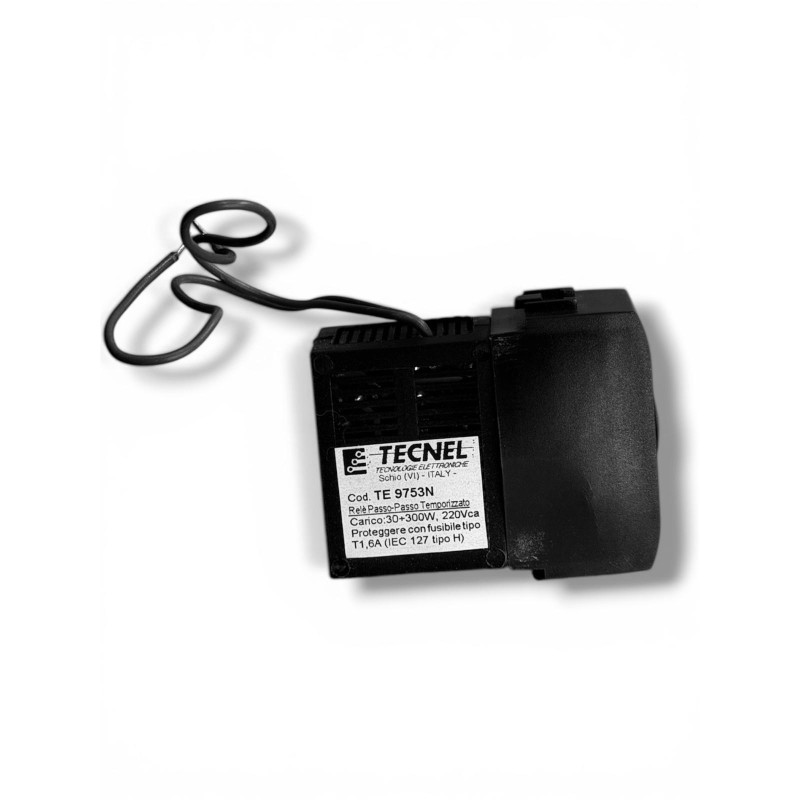

The TE9753N relay is the ideal solution for those seeking intelligent and discreet lighting control. Being an electronic component, it eliminates the annoying "click" of traditional relays, making it perfect for installations in bedrooms or relaxation areas.

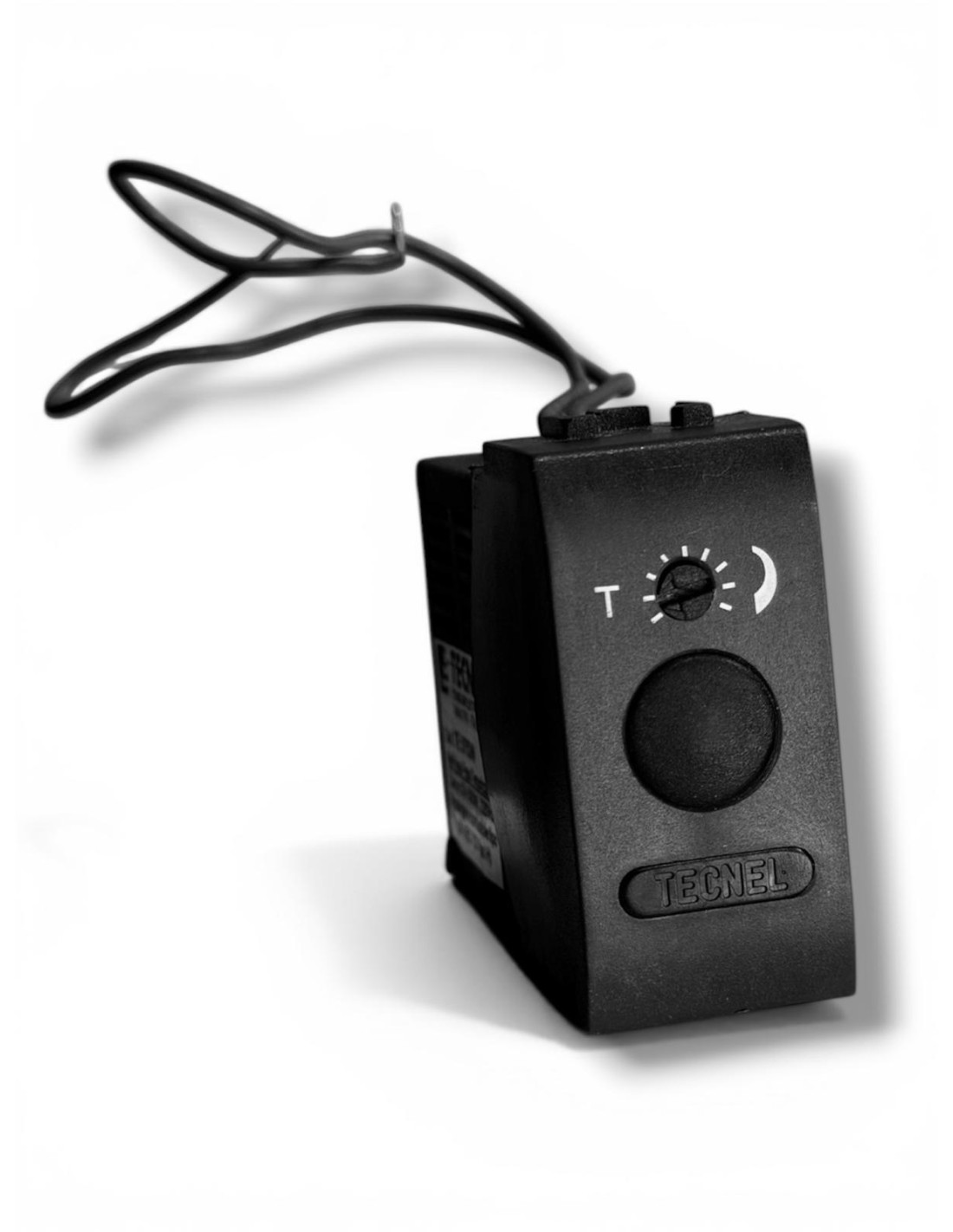

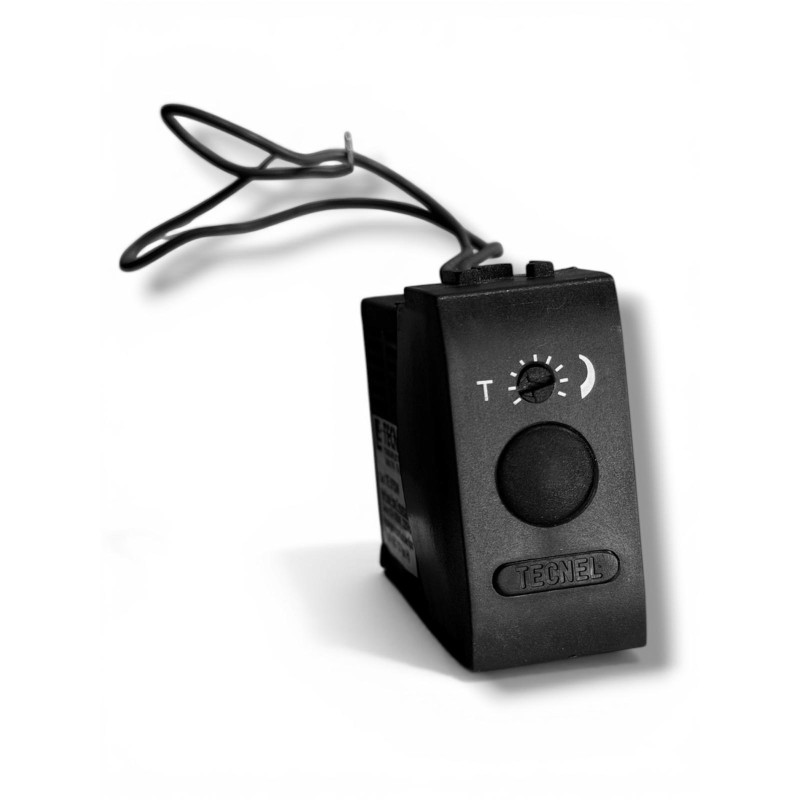

This model's strong point is its versatility: using an integrated trimmer (accessible from the front or side, depending on the model), you can set the desired operating mode. It can handle heavy loads up to 10A, including modern LED systems, halogen lamps, and incandescent bulbs. The anthracite finish is designed to integrate seamlessly with the Living International series plates and switches, ensuring a flawless aesthetic.
Technical Features:
* Dual Function: Step-by-Step Operation (pulse to turn on, pulse to turn off) or Timed (auto-off).
* High Silence: Electronic technology that minimizes switching noise.
* Timing Adjustment: Time adjustable from approximately 30 seconds to 15 minutes.
* Universal Compatibility: Supports an unlimited number of external buttons (even illuminated ones, within the light's current limits).
* Standard Installation: Attaches directly to Living International supports (1 module).
Technical Specifications:
FeatureValue
Product Code: TE9753N
Compatible Series Living International (BTicino)
Power supply 230V AC - 50Hz
Contact Rating 10A (Resistive) / 2A (Inductive)
Load Type LED, Halogen, Incandescent, Fluorescent
Time AdjustmentFrom 30 seconds to 15 minutes approximately
Number of Modules1 Module
Color: Anthracite / Black
The TE9753N time relay is the professional choice for solving various system needs:
1. Staircase and Corridor Lights: Use it as a timer to prevent lights from being left on unnecessarily, ensuring immediate energy savings.
2. Passageways (Entrances/Garages): Set the lights to automatically turn off after a few minutes so you don't have to worry about turning off the lights when you leave.
3. Bathrooms and Extractors: Perfect for controlling the bathroom extractor fan, ensuring that it continues to run for a few minutes even after the lights have been turned off.
4. Silent Installations: Essential in hotels, hospitals or bedrooms where the noise of a mechanical relay could be annoying during the night.
5. Multi-point control: Ideal for replacing complex diverters and inverters, allowing ignition from infinite points with simple NO buttons.
Installation tip: For proper setup, be sure to adjust the timer trimmer before closing the plate. In timed mode, a new pulse during the countdown usually resets the timer from the beginning (reactivation function).
