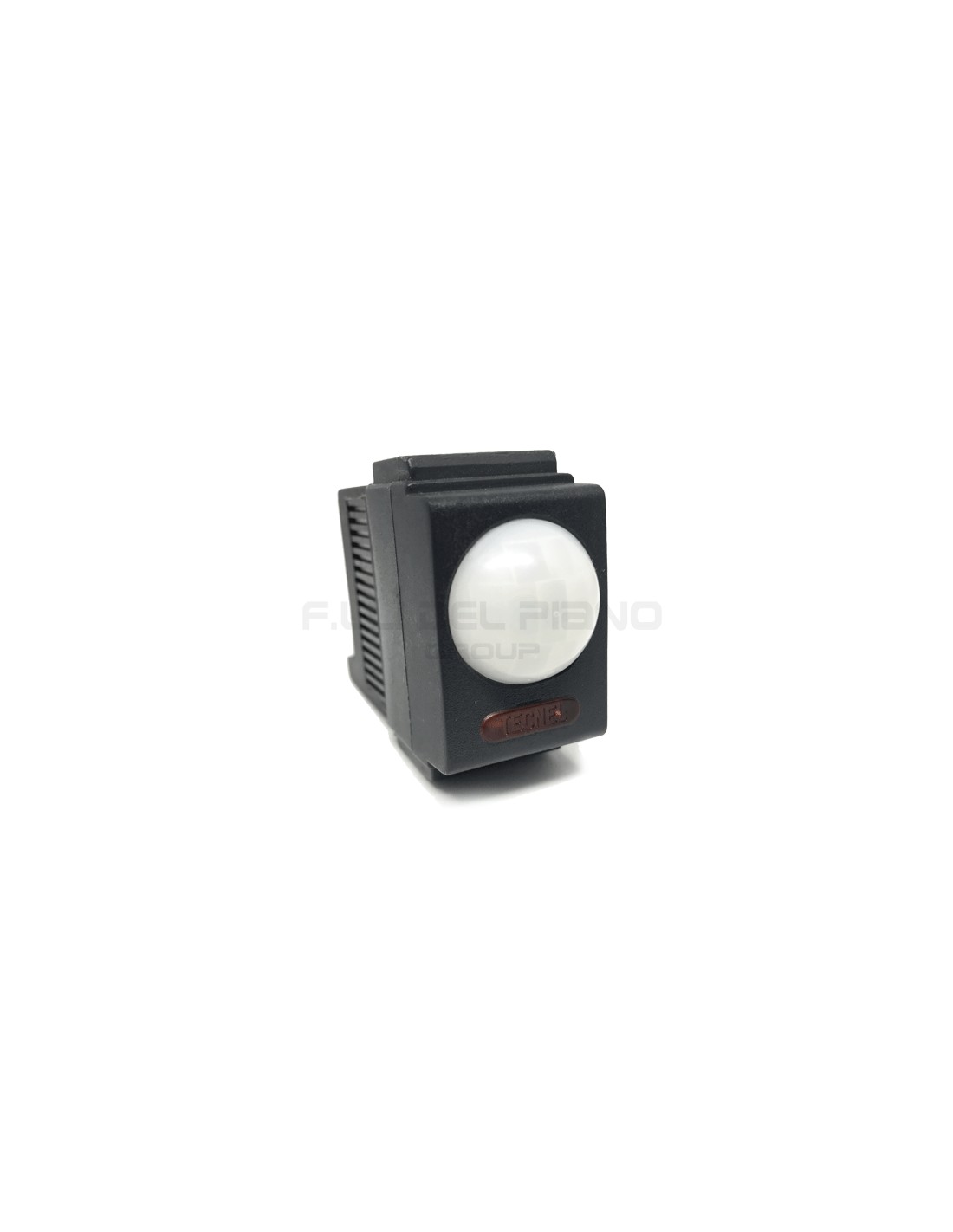

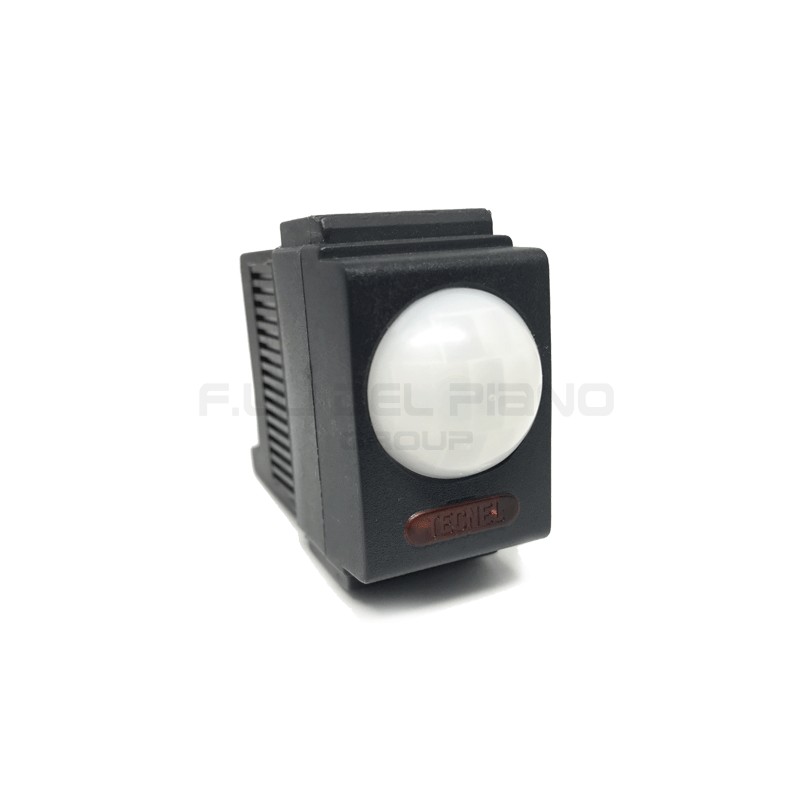

The Lilliput Switch TE3301 detector represents the evolution of flush-mounted presence sensors. Thanks to its highly sensitive detection lens, it constantly monitors the detection area, activating the connected load only when necessary.
This model's unique feature is the integrated front LED, which offers a dual benefit: it signals detection and acts as a courtesy light to locate the control even in total darkness. The module contains two adjustable trimmers:
1. LUX Trimmer: to set the desired ambient brightness level for activation (prevents the light from turning on during the day).
2. TIME trimmer: to establish how long the light should remain on after the last motion detected.
The anthracite finish is designed to blend in perfectly with the original Living International components, ensuring impeccable aesthetic continuity in the light point.
Main Features:
* Lilliput Switch Technology: Compact design and optimized electronic circuitry for maximum reliability.
* LED Signaling: Built-in LED light for night time monitoring and location.
* Real Energy Savings: Reduces waste by turning off lights when the room is unoccupied.
* Quick Installation: Mounts on standard Living International series supports, taking up just one module space.
Technical Specifications:
FeatureValue
Product Code: TE3301
Compatible Series Living International (Anthracite)
Power supply 230V AC - 50Hz
PIR (Passive Infrared) Sensor Technology
Detection Angle ∞110°
Maximum range: approximately 7-9 meters
Time AdjustmentFrom 10 seconds to approximately 10 minutes
Lux AdjustmentFrom 5 to 1000 Lux
Visual Signaling Integrated LED light
What can it be used for? (Intended use)
The Lilliput Switch TE3301 detector is the ideal solution for automating lighting in different areas of your home or office:
1. Entrances and hallways: The light turns on automatically as soon as you enter the house, welcoming you into a brightly lit environment without having to search for the switch.
2. Bathrooms and Anterooms: Great for children or guests who aren't familiar with the location of the light switches; it also ensures automatic shut-off once they leave.
3. Night Corridors: Thanks to the location LED, the sensor is easily visible in the dark and activates the main light for completely safe passage.
4. Walk-in closets and storage rooms: These are spaces where you often enter with your hands full and tend to forget the light is on.
5. Internal Stairs: Strategically installed, it ensures that each step is illuminated as you pass, increasing home safety.
Installation Note: To avoid false detections, it is recommended not to install the sensor near air conditioners, fans, or sources of intense heat. Make sure the load (light bulb) is compatible with the sensor's power specifications (approximately loads up to 1000W for incandescent bulbs or 200W for LEDs; always check the relay rating on the packaging).
