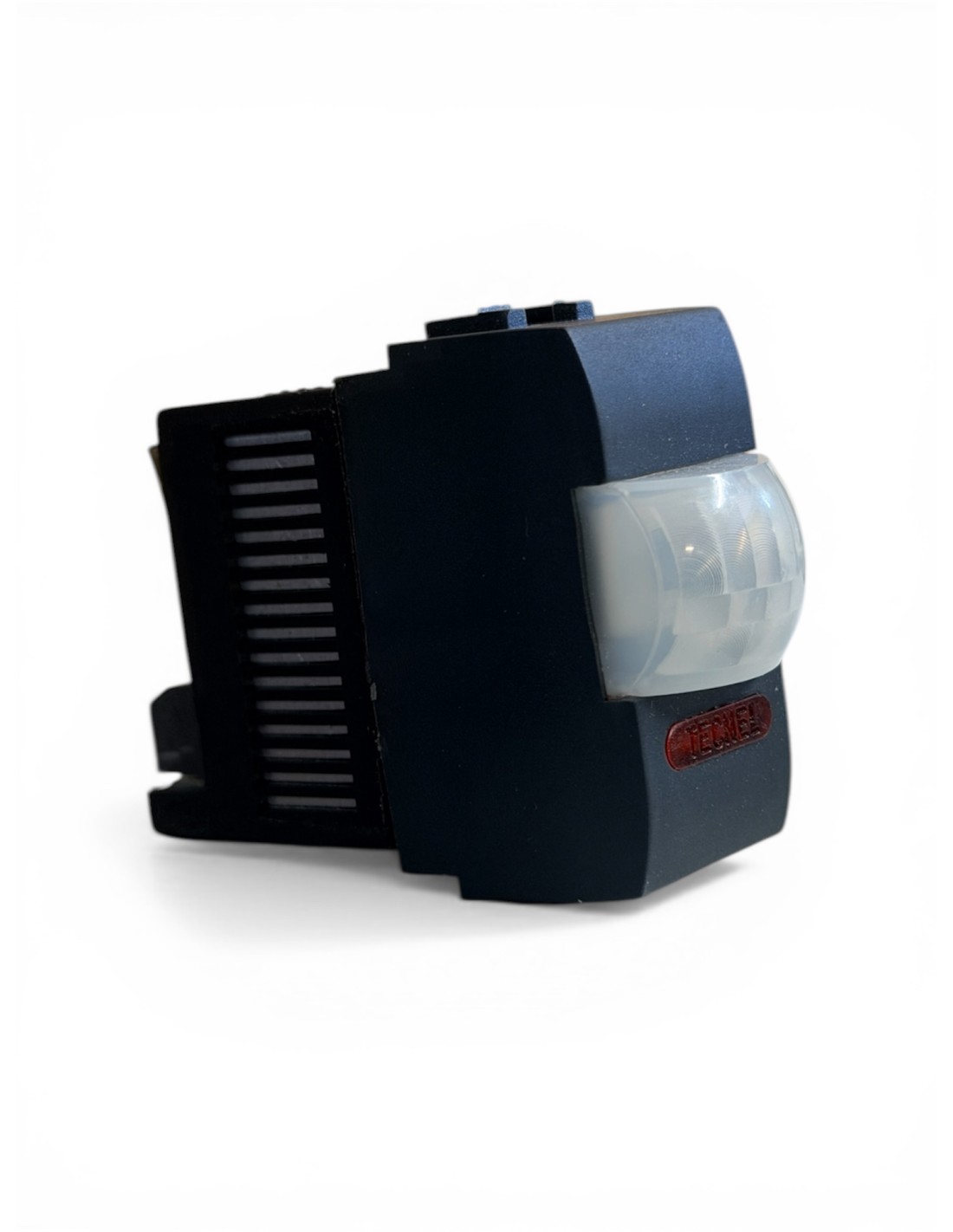

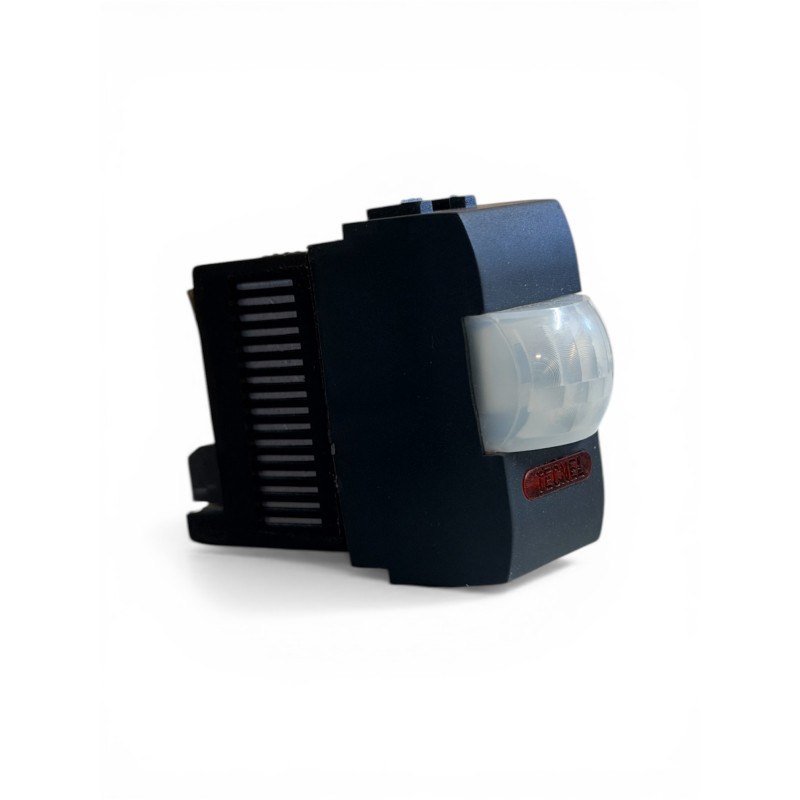

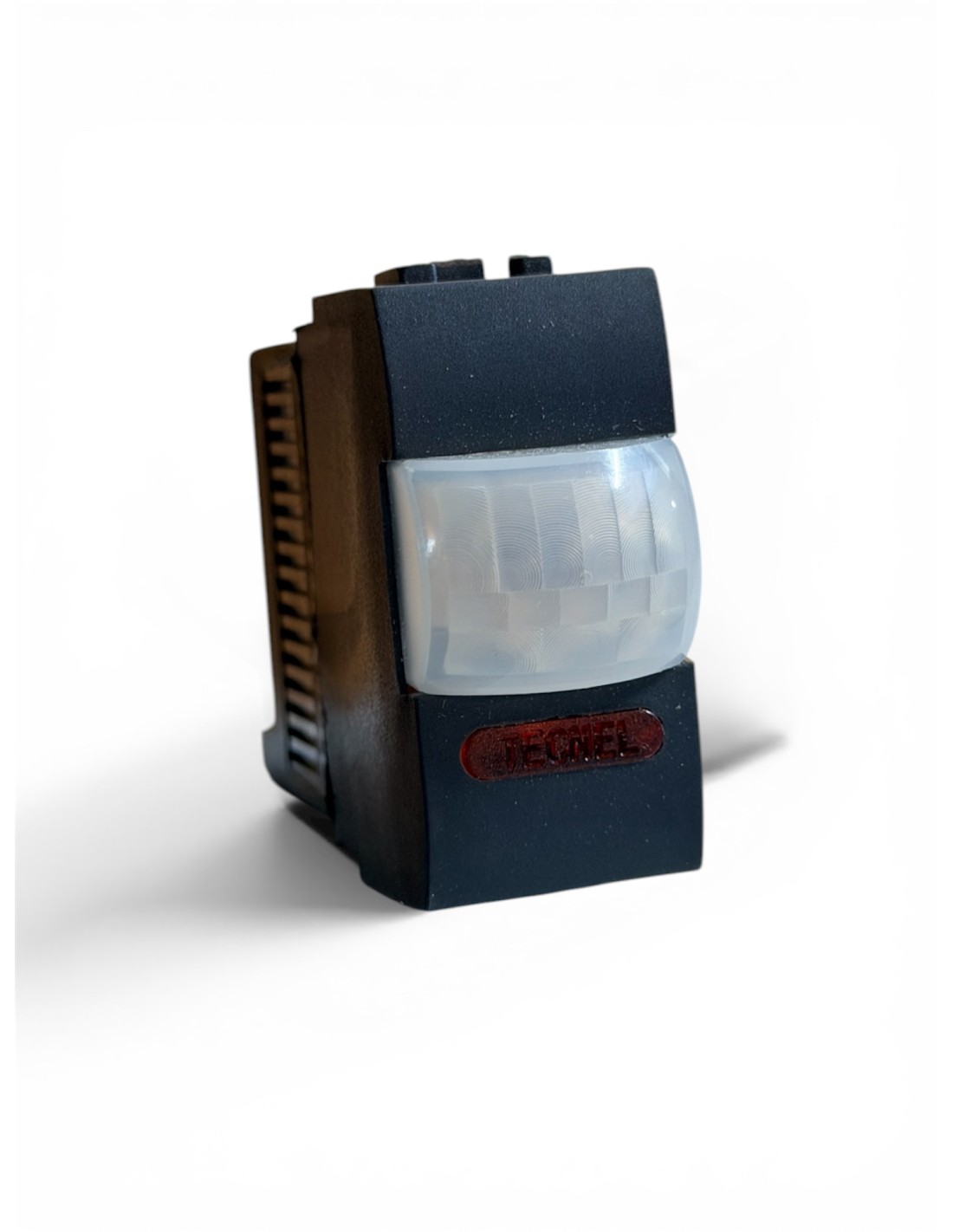

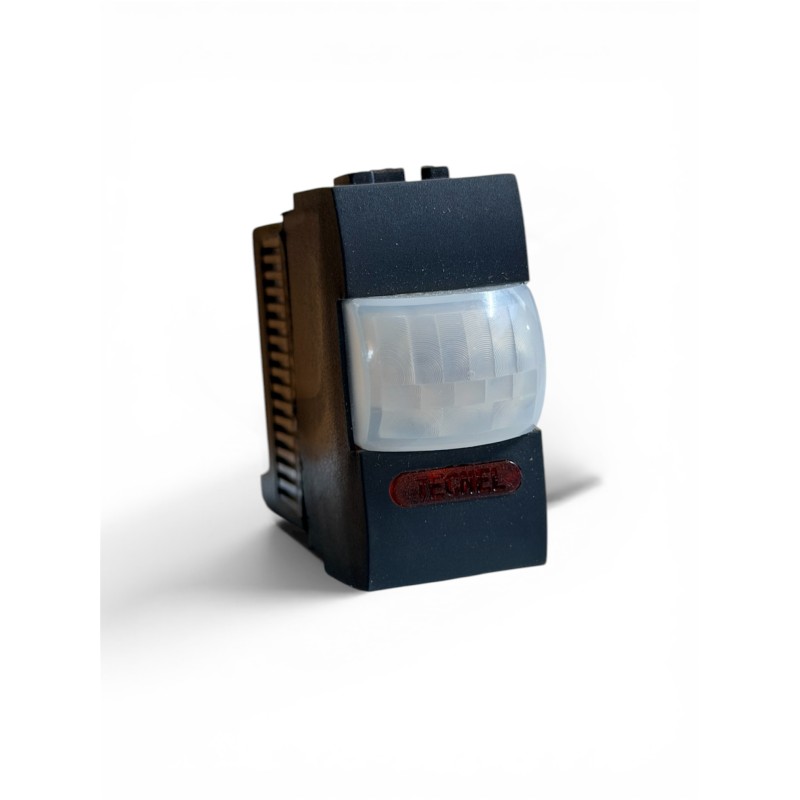

Lilliput alarm led living classic tecnel electronic presence detector

Invisible Technology, Total Control
The Lilliput Switch represents one of the most versatile motion detection solutions thanks to its compact size (hence the name), which allows it to be built-in or hidden in various contexts, from furniture to walls. Unlike common 230V sensors, this model operates at low voltage (12V DC), making it perfect for integration with home automation systems, alarm systems, or low-voltage LED lighting.
Technical and Functional Features
·Isolated Relay Output: The strong point of this sensor is the dry changeover contact (NC-C-NO). This means that the sensor acts like a mechanical switch, allowing it to manage circuits independent of the sensor's power supply, with a maximum capacity of 1A.
·Visual Signaling: Equipped with an integrated bright LED that activates upon detection, facilitating the testing phase and positioning of the action range.
·Safe power supply: Operating at 12V DC, it is ideal for being powered by buffer batteries or stabilized power supplies common in the security sector.
·Operating Logic: Detects heat variations (passive infrared) caused by the passage of people in the coverage area, instantly activating the relay.
Common Applications
0.Home Automation: As an input for PLCs or electronic boards that require a clean contact.
0.LED lighting: Automatically turn on LED strips inside wardrobes, walk-in closets or furniture.
0.Security: Integration into video surveillance systems to activate local recorders or alarm signals.
0. Access Control: Automatic opening of electric doors or activation of acoustic alarms upon passage.
Real Technical Specifications
FeatureDetail
Power supply 12Vdc (Direct Current)
Sensor Type: Passive Infrared (PIR)

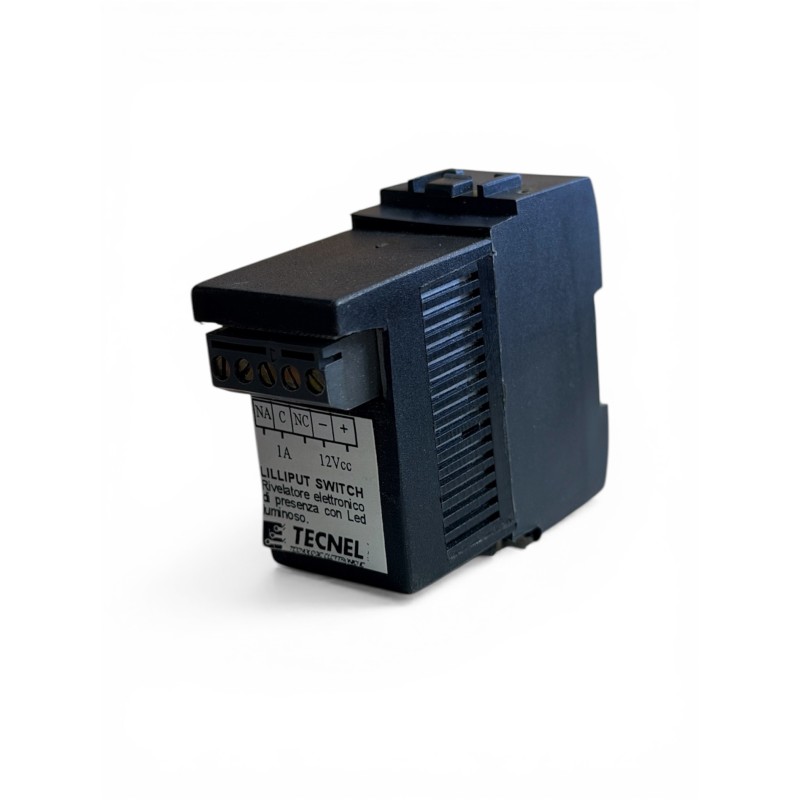

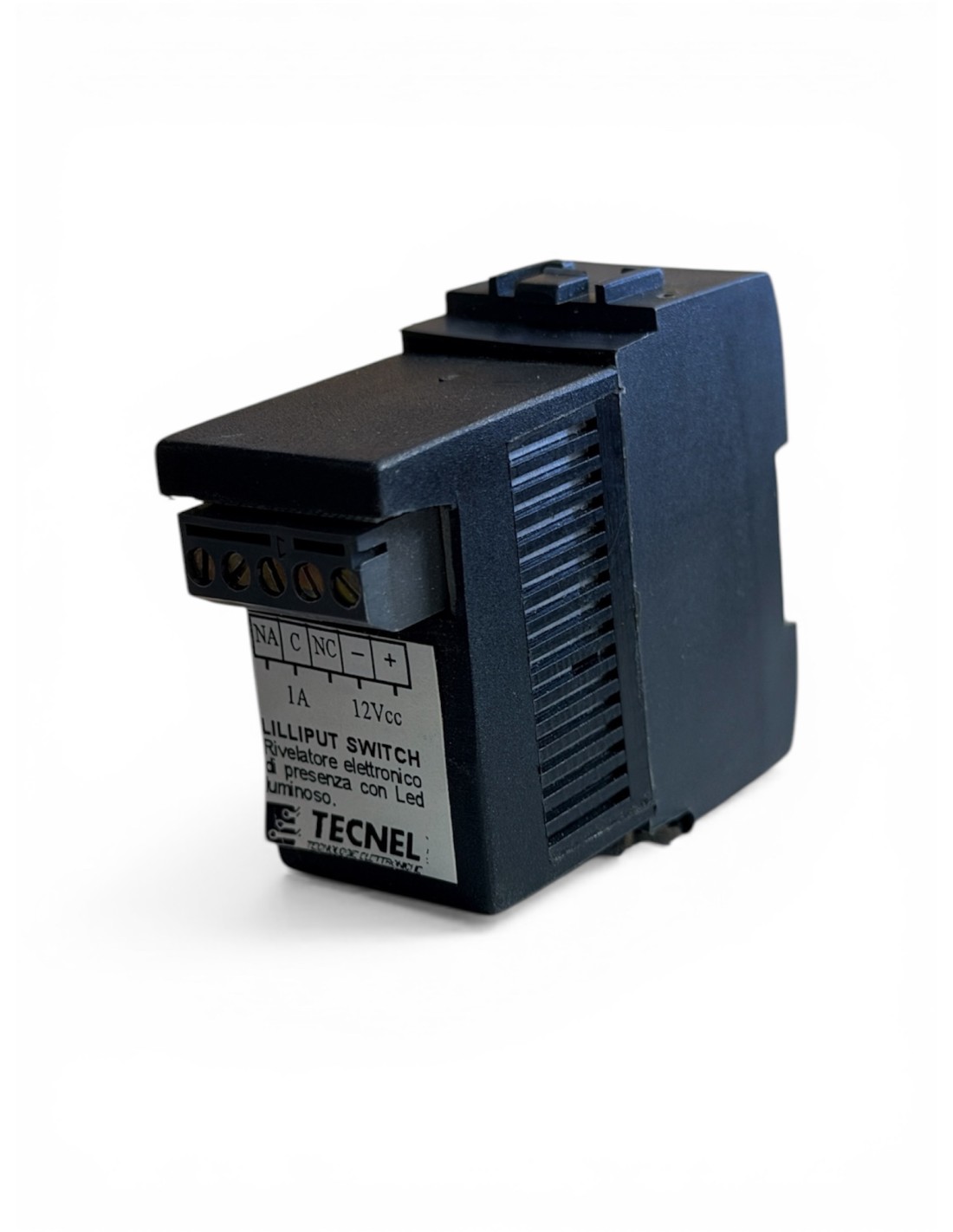

Relay output with isolated changeover contact (NC-C-NO)
Contact capacity Max 1A
SignalsIntegrated detection LED
Universal Installation (requires hole for PIR lens)
