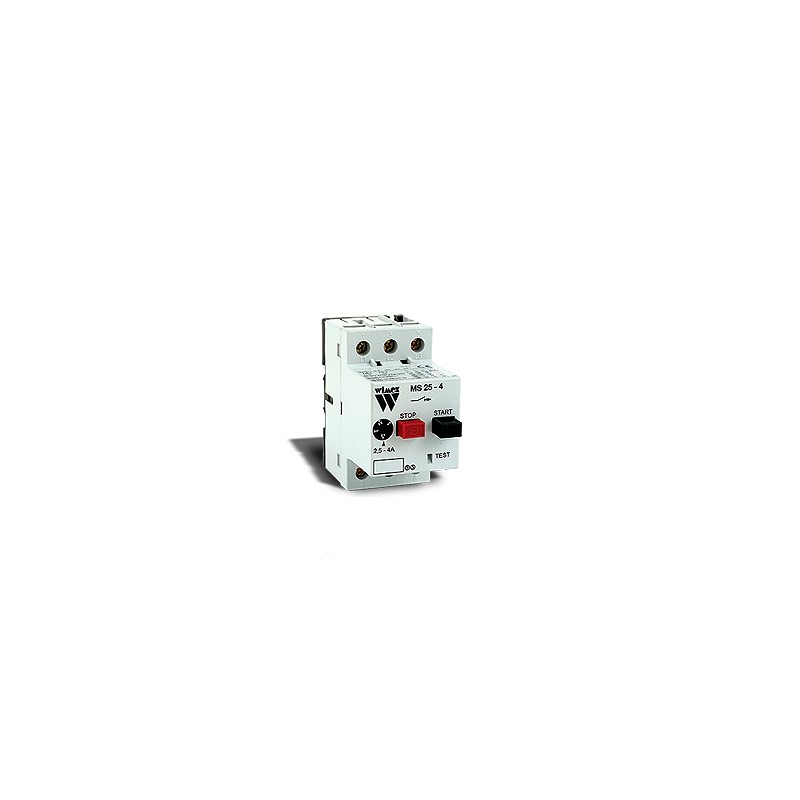

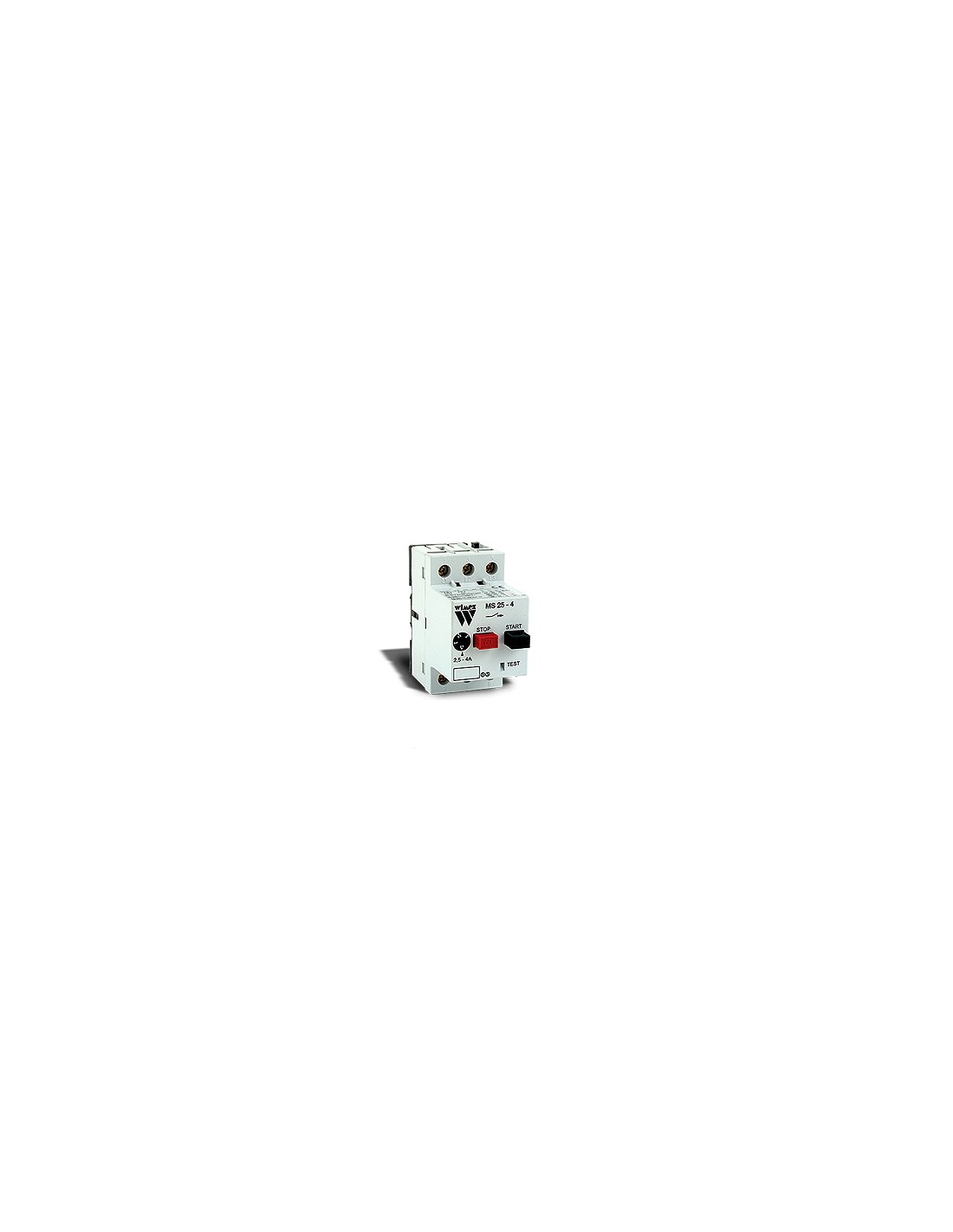

Motor protection circuit breaker ms25 10.0-16.0a wimex

Modular motor protection
suitable for the realization of direct starters for single-phase and three-phase asynchronous motors. available in two versions "thermal and magnetothermal" both bipolar and tripolar. automatic temperature compensation from -5 ° c to 50 ° c. high breaking power (lcu). the dimensions are the same for both types. the connection terminals are supplied already open to simplify the wiring; the cable tightening screws are of the cross type.

- thermal regulation 4.00-6.30a
- type ms 25 4.00-6.30a
- dimensions 73.50 x 45 x 45
- 690v magneto-thermal switches
compliance with the rules

approvals
nominal and insulated voltage ui
impulse insulation voltage (uimp)
nominal current lth = le
nominal frequency
electrical life 25a in ac 3
mechanical life
resistance to shocks and vibrations
operating temperature:
- in free air
- in the box
temperature compensation
climatic compatibility
degree of protection

magnetic intervention
link section
dimension according to din 43880
power dissipated
minimum bu absorption coil
release tension
operating voltage
ba voltage opening coil
of operation
