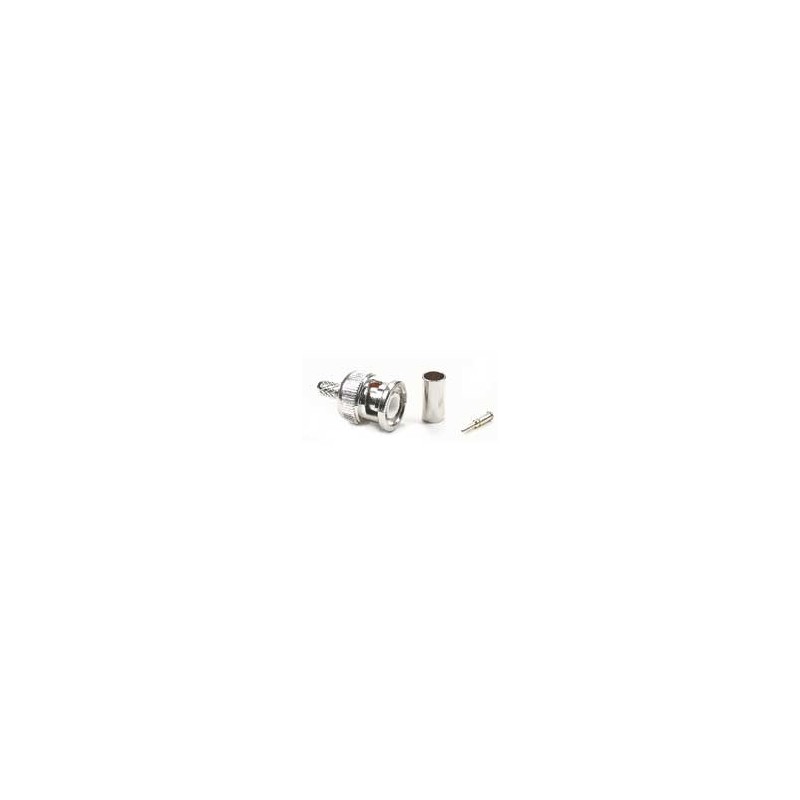

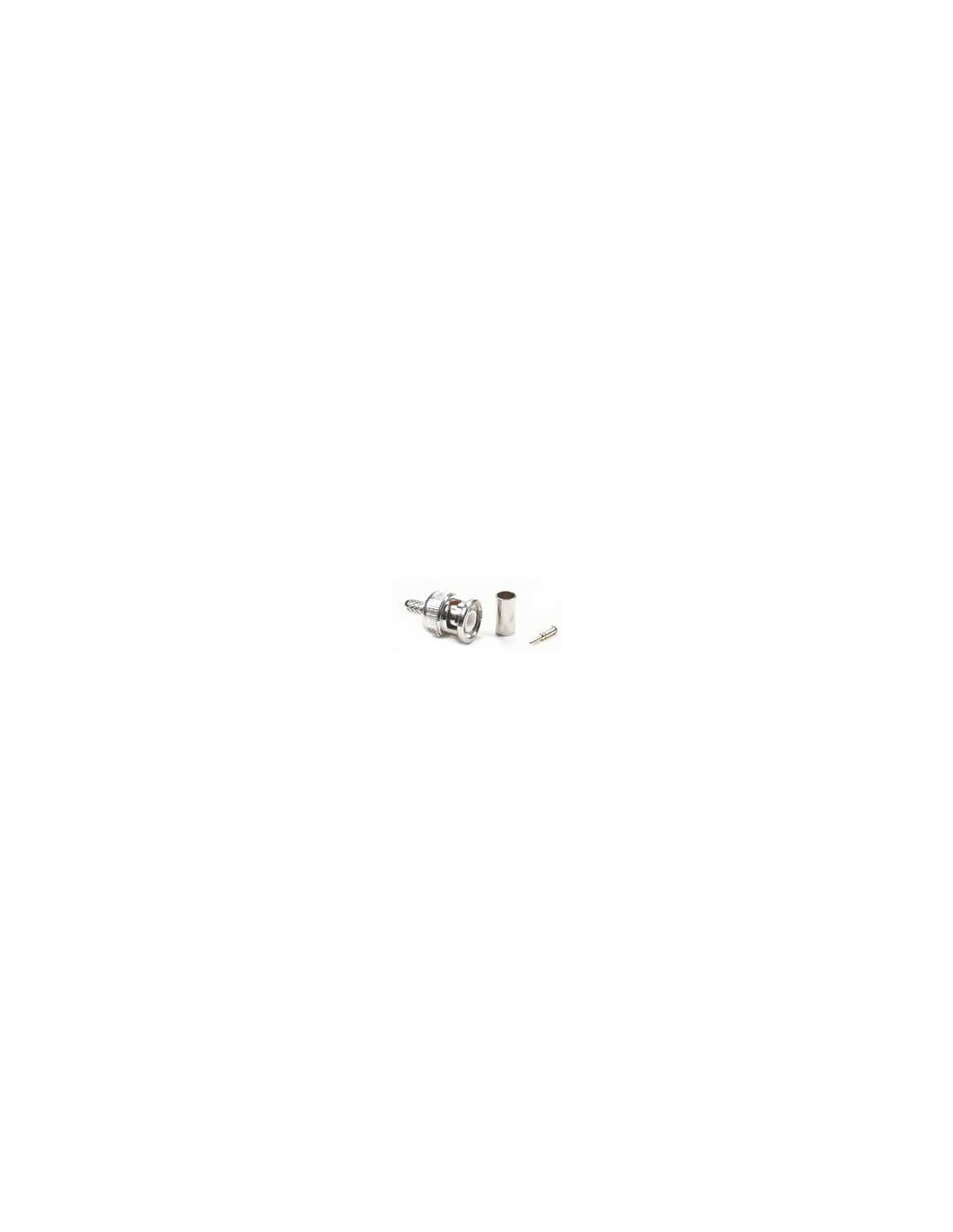

The RG-59 80-112 Chrome BNC Male Plug Connector is a critical component for installers and electronics enthusiasts who need a reliable connection for their audio/video systems. This connector is specifically designed for RG-59 coaxial cables, which are commonly used in high definition video transmission applications, such as surveillance systems, televisions and monitors.
The chromed metal construction of the BNC connector ensures greater resistance to corrosion and wear, protecting the connection from interference and ensuring a long life. The bayonet-style Bayonet Neill-Concelman (BNC) interface provides a fast and secure connection between the connector and the target device, without the need for soldering or special tools. Just insert and twist the connector into its housing to get a stable connection.
Installing this chrome male BNC connector is simple and straightforward. Just follow the standard steps for preparing RG-59 coaxial cable, which includes stripping the outer jacket, stripping the inner shield, and insulating the center conductor. Once the cable is prepared, simply insert the center conductor into the connector, make sure it makes contact with the plug, and then tighten the locking ring to secure the cable securely.
The compact size of the BNC connector makes it suitable for use in confined spaces, without compromising the quality of the connection. Its robust and reliable design ensures transmission of video signals without loss or distortion, allowing you to obtain clear and defined images.
When shoppers search online for this product, they can use different keywords to find what they are looking for. Some of the more common search terminologies include: "RG-59 80-112 chrome BNC male connector", "BNC male plug for RG-59 cable", "BNC coaxial connection for surveillance cameras", "BNC bayonet connector for monitors ", "BNC RG-59 video connector
Technical specifications
- body: nickel-plated brass
- insulation: delrin
- impedance: 50w / 75w
- frequency range: 0 - 4 GHz
- maximum applicable voltage: ac 500v
- maximum applicable voltage for 1 minute: ac 1500v
- contact resistance: 2.5 mw max.
- insulation resistance: 5000 mw min. dc 500v
