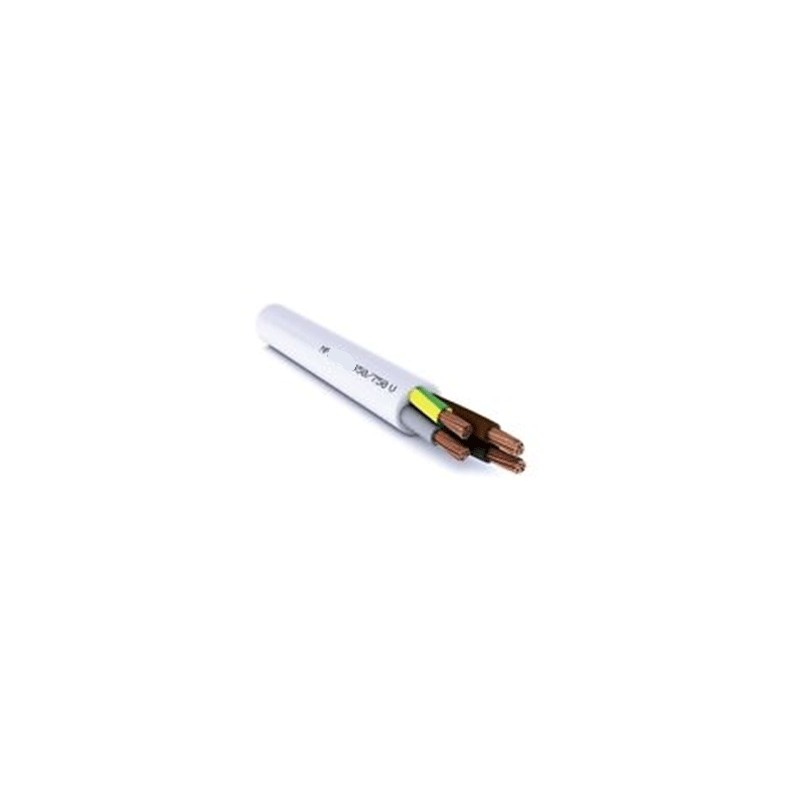

Electric tube cable 4x15 mmq fror 450 / 750v icel

Npi fror - 450/750 v multipolar power cable
for non-propagating fire and non-propulsion
reduced emission of halogen (corrosive gases) insulated under pvc sheath
pvc with flexible copper conductor. imq-cpt-007 cei 20-20 / 1 cei 20-20 / 2
cei 20-22 ii cei en 50267-2-1
cei en 50265-2-1 cei 20-52
- conductor: red copper flexible training class 5 npi fror - 450/750 v
- insulation: pvc ti2 quality
- sheath: pvc tm2 quality
- color: grey.
- npi® = not propagating the fire
- functional characteristics
- rated voltage uo / u: 450/750 v
- maximum operating temperature: 70 ° c
- maximum short circuit temperature of 160 ° c
- particular characteristics
- good resistance to mechanical stress and chemical agents.
- good flexibility and low temperature behavior.
- conditions of laying
- minimum setting temperature: 0 ° c
- minimum bending radius recommended: 10 times the diameter of the cable for laying 4 times for fixing.
- maximum recommended tensile stress 1.5 kg per mm² of copper section per
mobile laying 5 kg per mm² for fixed installation
- use and type of laying
- installation for mobile and fixed installation in places with fire hazard such as
fairs residential construction industry and crafts.

- can be installed inside in normal or damp environments
temporarily outside.

- 100mt
- gray color
-

Product Details

Condition New
