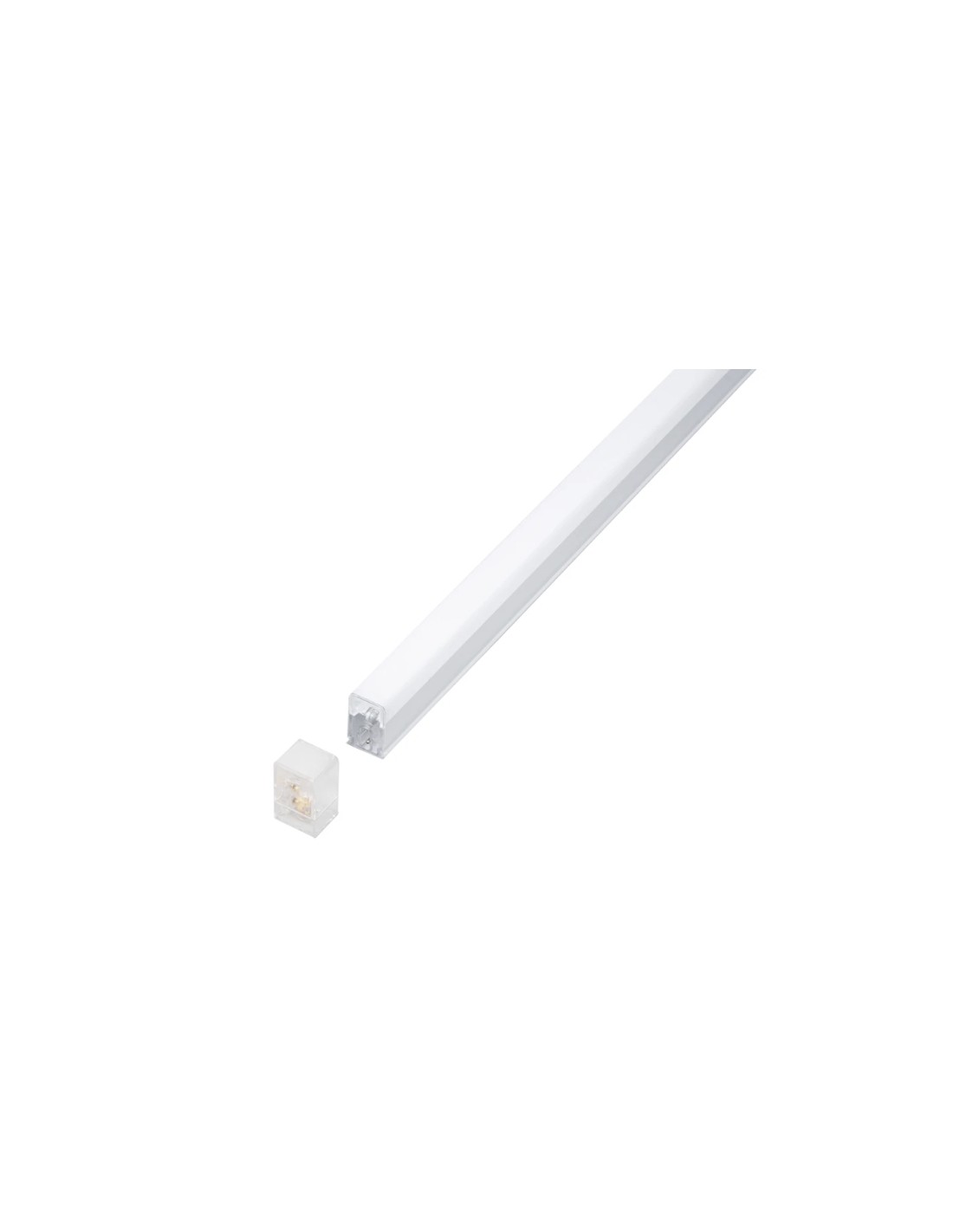

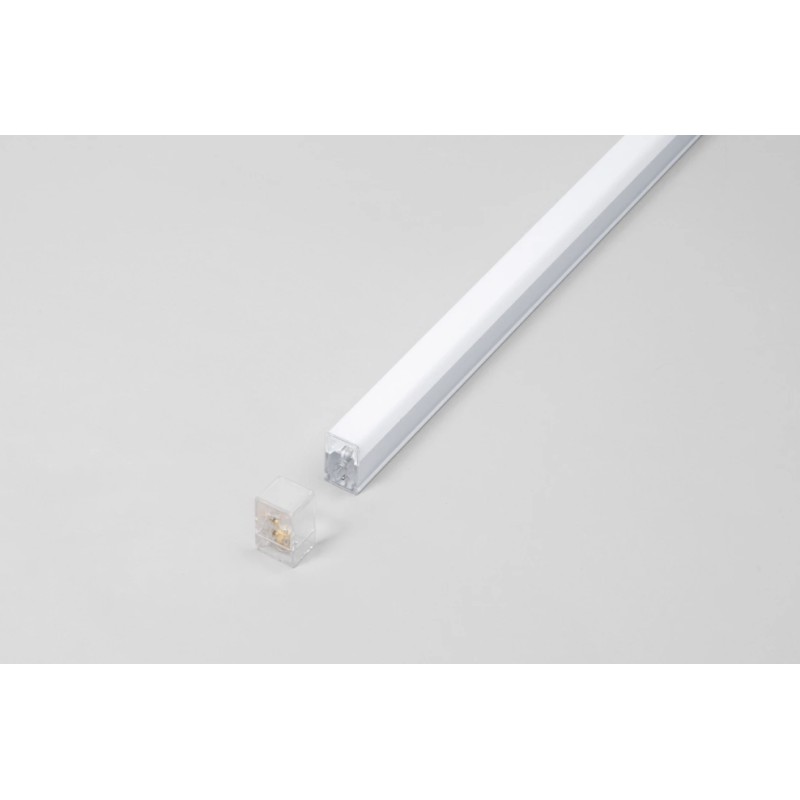

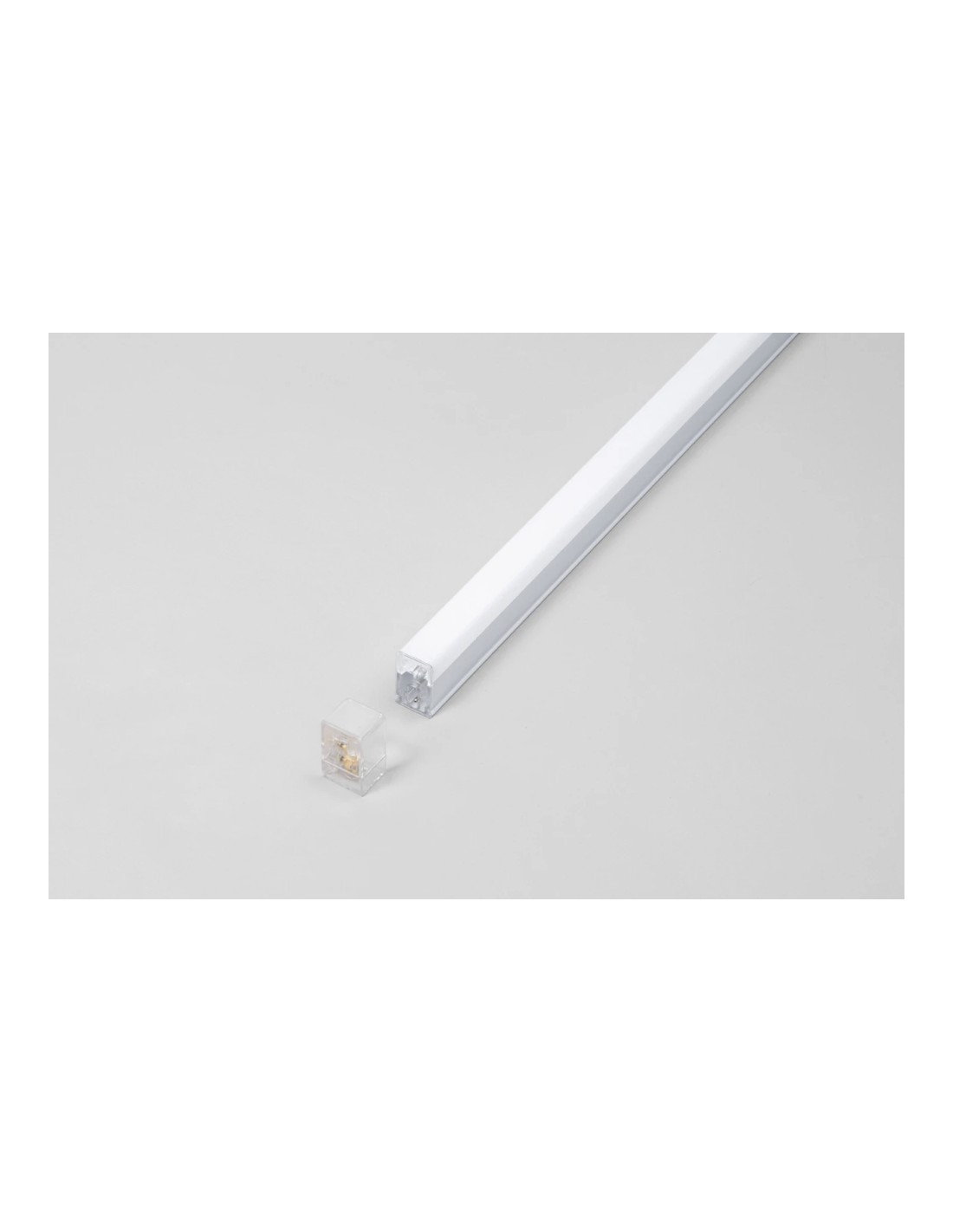

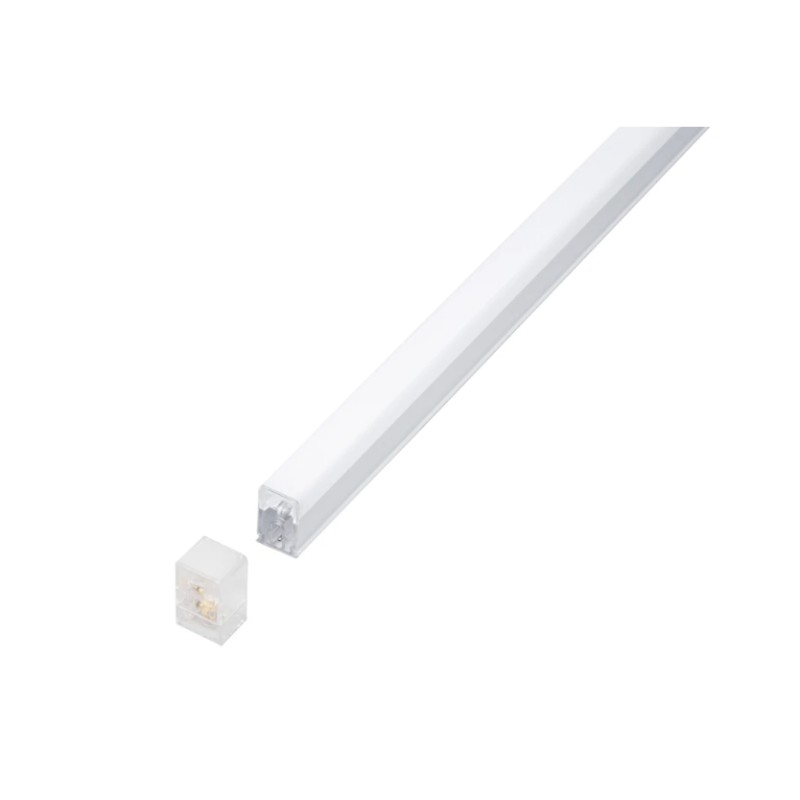

SHAPE CAP modular cap

SHAPE CAP: Professional Finish and Safety for your LED System

The SHAPE CAP component is the essential accessory for successfully completing the installation of honeycomb lighting systems or linear structures based on plug-in LED modules. In a system where the current flows from one bar to the next via pin connectors, the end cap plays a crucial technical and aesthetic role.

Why is it necessary to use the SHAPE CAP?

Electrical Safety: The modular LED strips feature plug-in terminals. The SHAPE CAP isolates these contacts, preventing accidental shocks or short circuits, especially in close-by installations.

Internal Protection: By sealing the end of the bar, it prevents dust, moisture or small insects from entering the polycarbonate profile, preserving the cleanliness of the diffuser and the life of the LED chips.

Neat Aesthetics: Eliminates the view of internal circuitry and male/female connectors, giving the structure a finished, continuous and professional look.

Technical Specifications:

Compatibility: Specifically designed for SHAPE series LED bars (pin connection).

Material: High heat resistant polycarbonate / ABS.

Color: White (perfectly coordinated with the body of the bars).

Installation: Snap-on, no tools or screws required.

Dimensions: Shaped to perfectly match the profile of 22-23mm wide bars.

Installer Tip: Be sure to insert a SHAPE CAP on each free end of your geometric composition to ensure that the entire system meets safety standards and offers a flawless visual impact.
