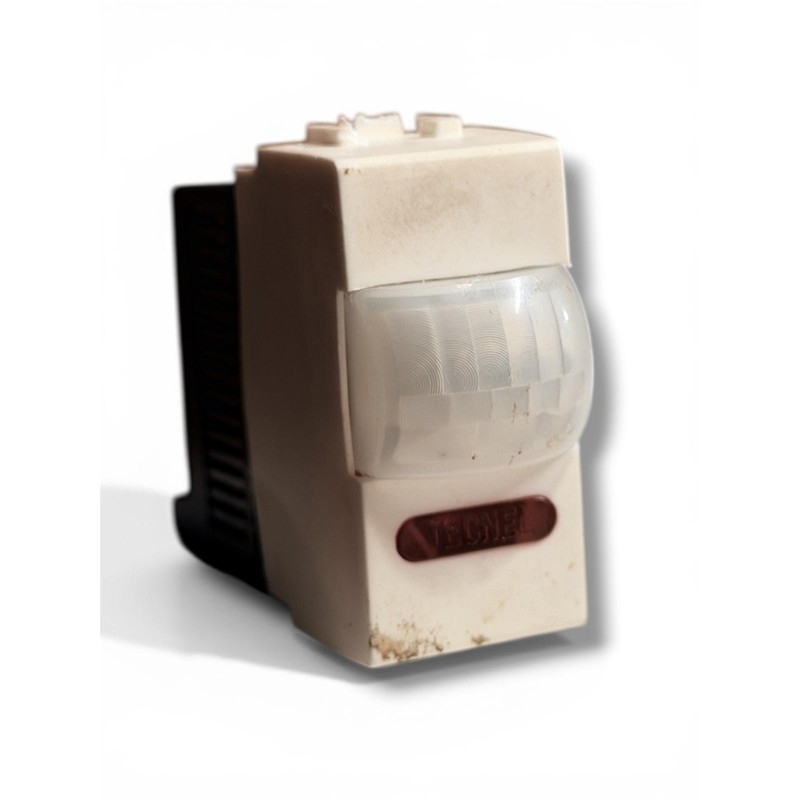

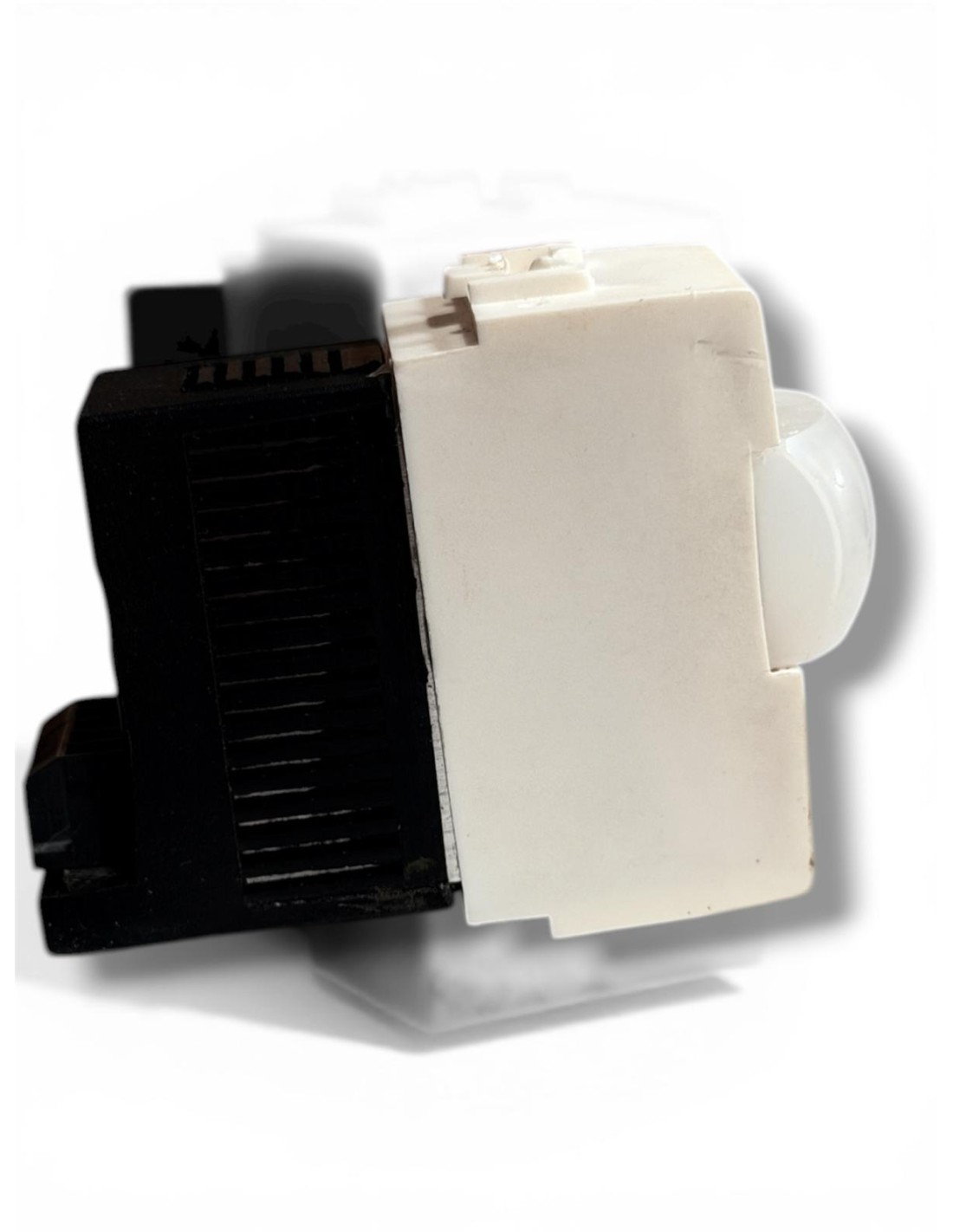

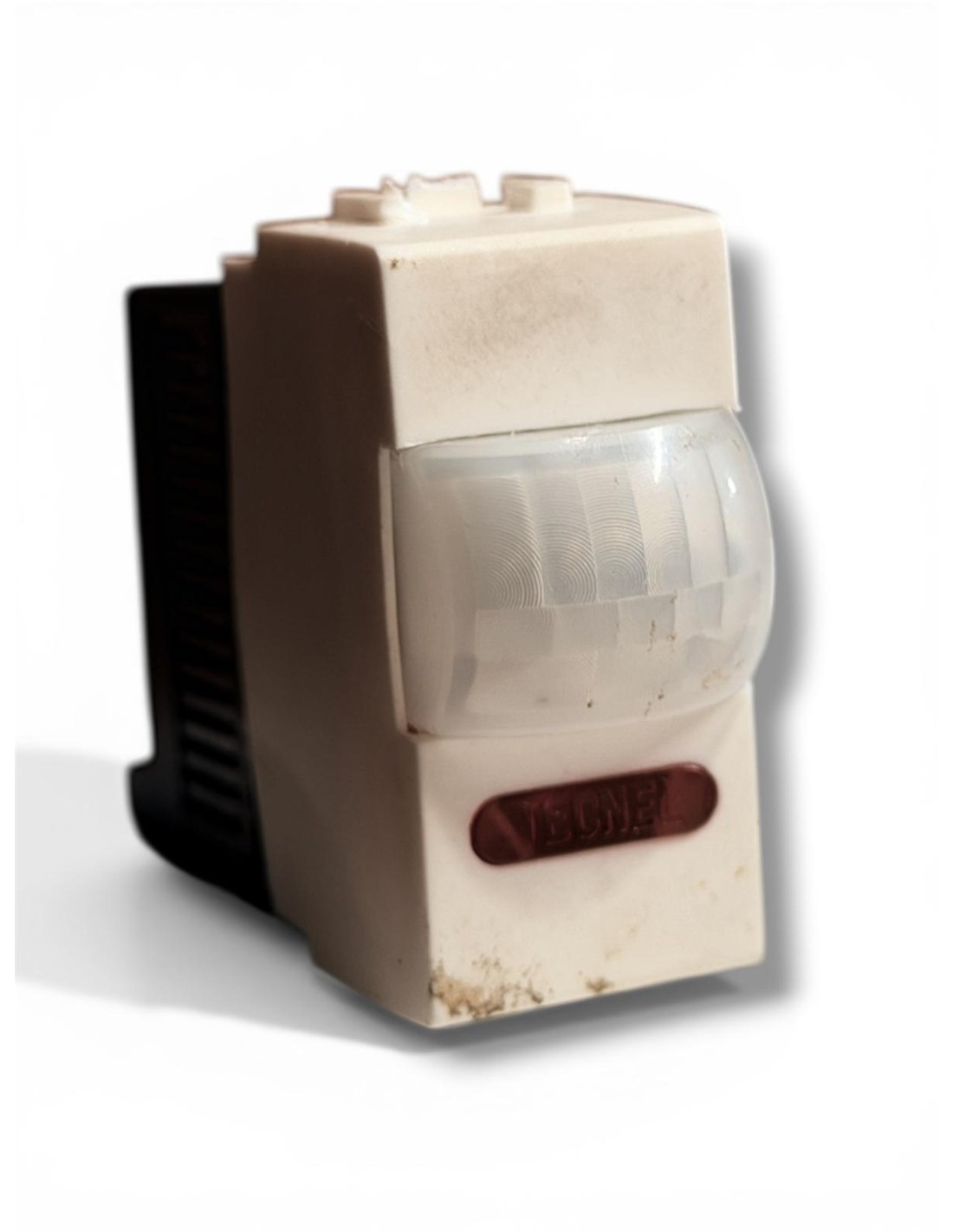

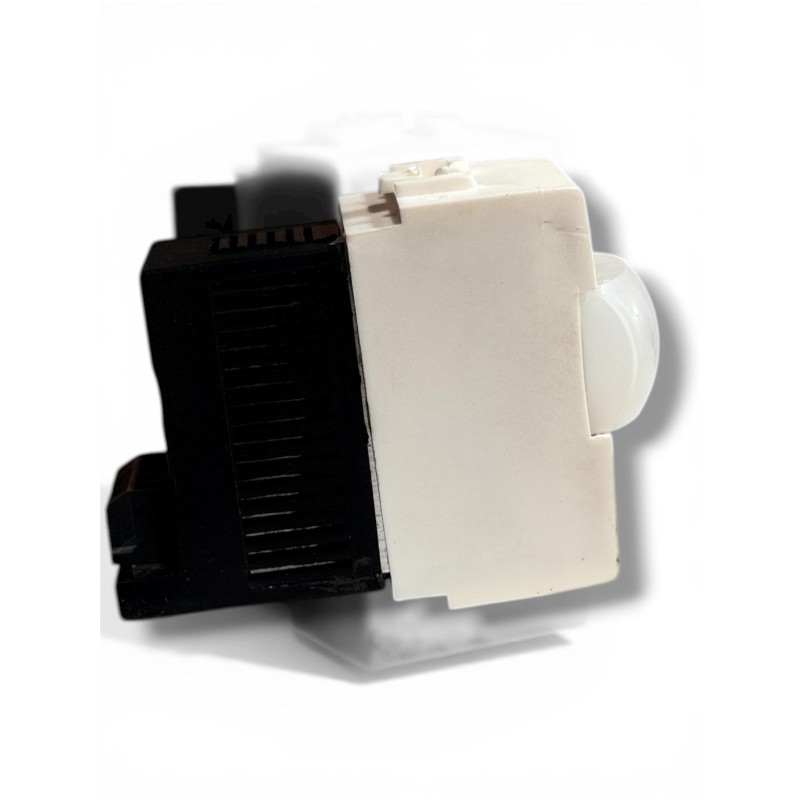

The TE3303 detector from Tecnel combines advanced technology and clean design, perfectly coordinating with the Light series lights thanks to its glossy white finish. The sensor uses PIR (Passive Infrared) technology to detect temperature variations caused by human movement within its range.
Unlike a simple switch, this device automates room management: the lights turn on only when needed and only if natural light is insufficient. It features two internal trimmers that allow the installer or user to customize the user experience:
0.Time Adjustment (TIME): to decide how long the light should remain on after the last motion detected.
0.Lux Adjustment (LUX): to set the ambient brightness threshold below which the sensor must activate (avoiding unnecessary switching on during the day).
Main Features:
·Perfect Integration: Color and shape identical to the BTicino Light series (white).
·Oriented PIR Sensor: Front lens designed for optimal coverage of the passage area.
·Energy Saving: Drastically reduces electricity waste by automatically turning off lights in empty rooms.
·High Reliability: Tecnel electronic circuitry protected against mains interference.
Technical Specifications:
FeatureValue
Product Code: TE3303
Compatible Series BTicino Light (White)
Power supply 230V AC - 50Hz
Detection Angle: About 110°
Sensor Range 7-9 meters (variable based on temperature)
Timing AdjustmentFrom 10 seconds to approximately 7 minutes
Twilight Adjustment From 5 Lux to 1000 Lux
Output TypeRelay (for controlling lamps or electrical loads)
Number of Modules1 Module
What can it be used for? (Intended use)
The TE3303 detector is extremely versatile and can be used for various purposes:
0.Automating Lights in Corridors and Entrances: Ideal for turning on the light as soon as you enter the house or cross a corridor, without having to look for the switch in the dark.
0. Security and Deterrence (Passive Anti-Theft): If installed in strategic locations, the sudden switching on of the light acts as an excellent deterrent against attempted intrusions.
0. Bathrooms and Closets: Perfect for spaces where lights are often left on. The sensor will automatically turn off everything as soon as the room is empty.
0. Internal Stairs: Ensures safe passage between floors by turning on the light when motion is detected, essential for the safety of children and the elderly.
0. Cellars and Garages: Allows you to have your hands free (for example when carrying weights) without having to worry about operating manual switches.
Installation tip: For optimal performance, avoid installing the sensor directly in front of heat sources (radiators) or in places where it is exposed to direct sunlight, to prevent false detections.
