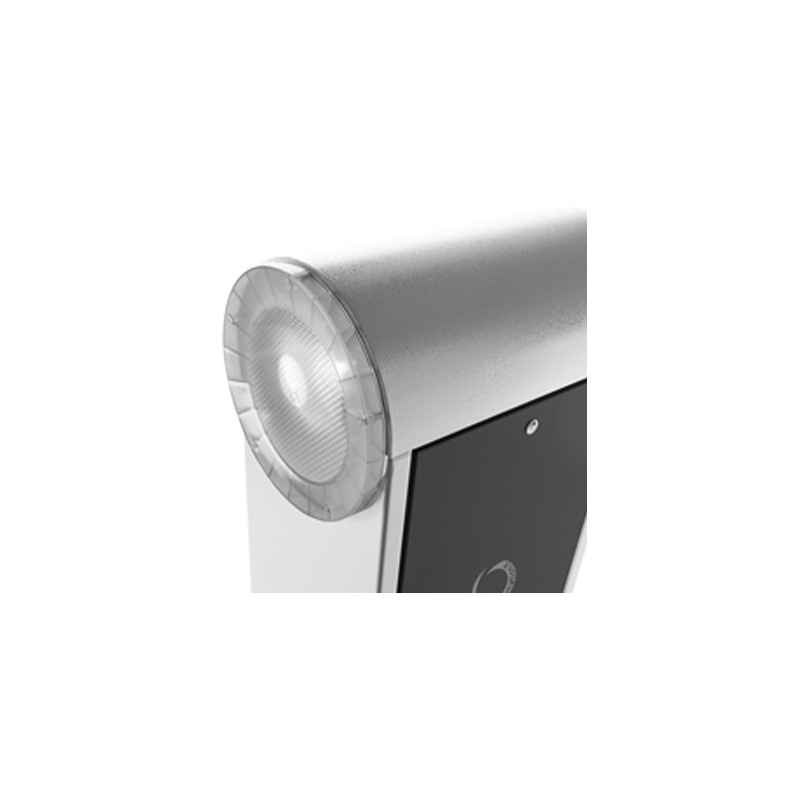

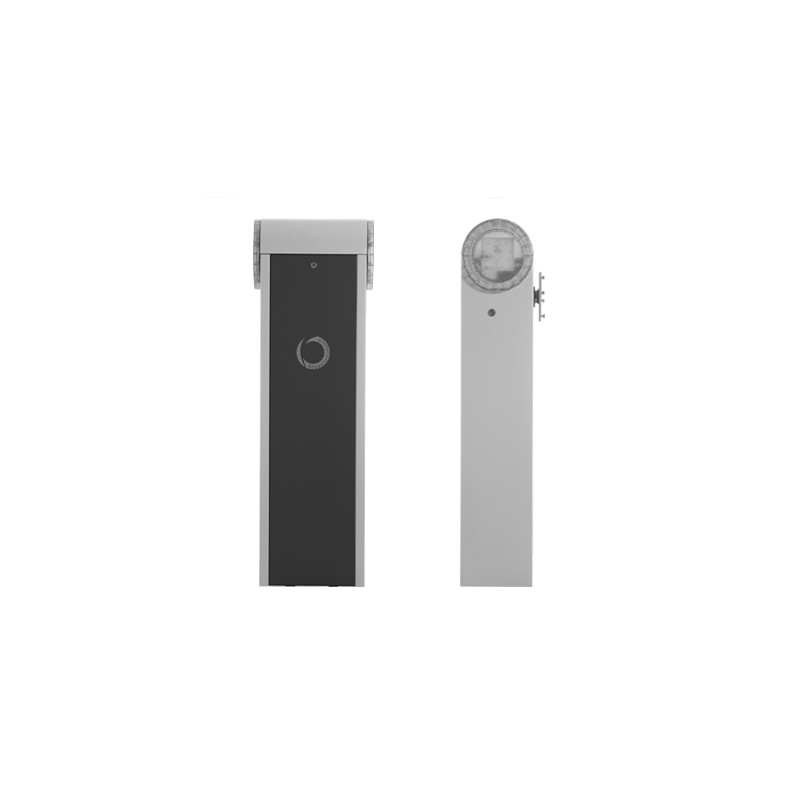

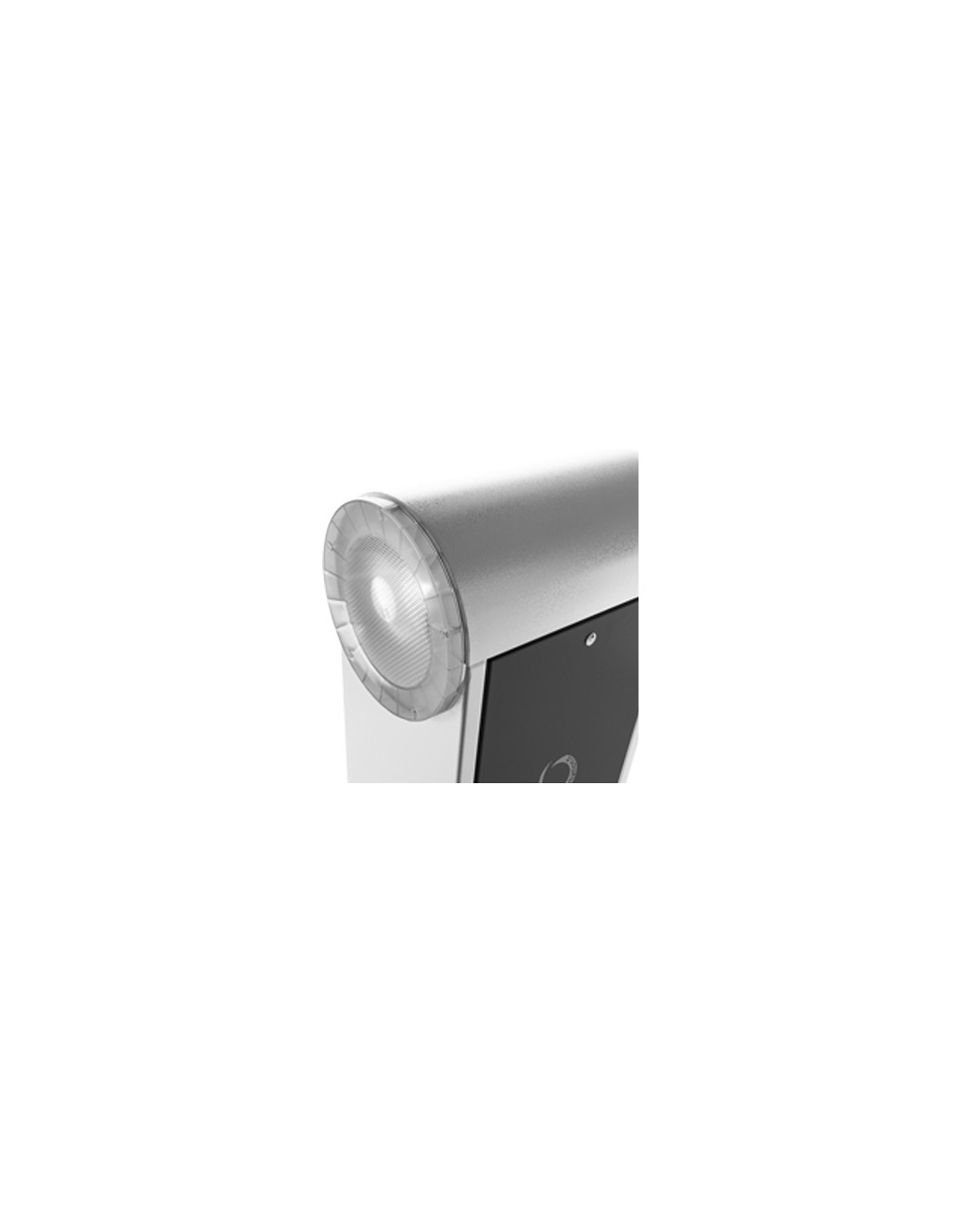

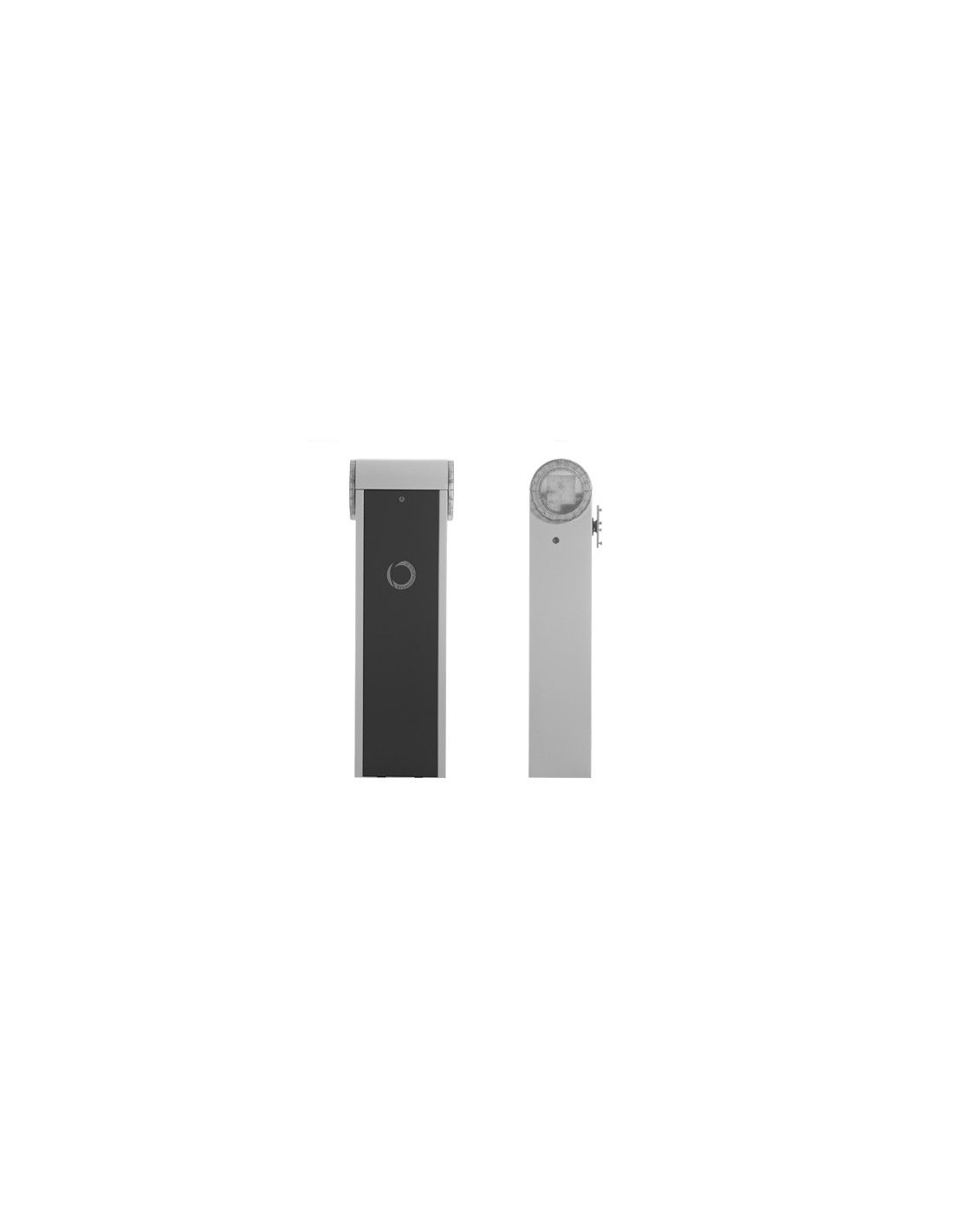

Electromechanical kit barrier 34 to 4mt 24vdc encoder key motor

Kit electromechanical barrier with double flashing led for 4 m 24 vdc rod
maximum speed - up to 3.5 seconds for alt424k
double flashing integrated two-tone green / red.
anti-uv powder coating.
robust levers and gears for reliable performance over time.
encoder for maximum security in obstacle detection.
suitable for intensive use both for private and public solutions.
power saving function.
universal box: the rod can be installed either to the right or to the left.
possibility of separate speed in opening and closing.
integrated receiver
with central 24 vdc ct102 24

technical features

work cycle 80%
control station ct102.24
power supply 230v
absorption 1.3 a
absorbed power 300w
degree of protection ip54
dimensions 360 x 220 x 1110 mm
length max. rod 4mt
integrated light
opening time 90 ° 3.5 sec.

included accessories:
- 900cp-br against fixing plate c / zanche
- 900ast5 aluminum stone 5m x 60mm aluminum with cups
- 900ad kit 10pz catarifrange adhesive
- 900apfx fixed support for asta ral7047
- 900ft22 mini photocells from outdoors
- 900ch-51 color h50 color cover for ft mini
- 900sub-44wr trasm. quadric. 433mhz rollcode white



technical card
