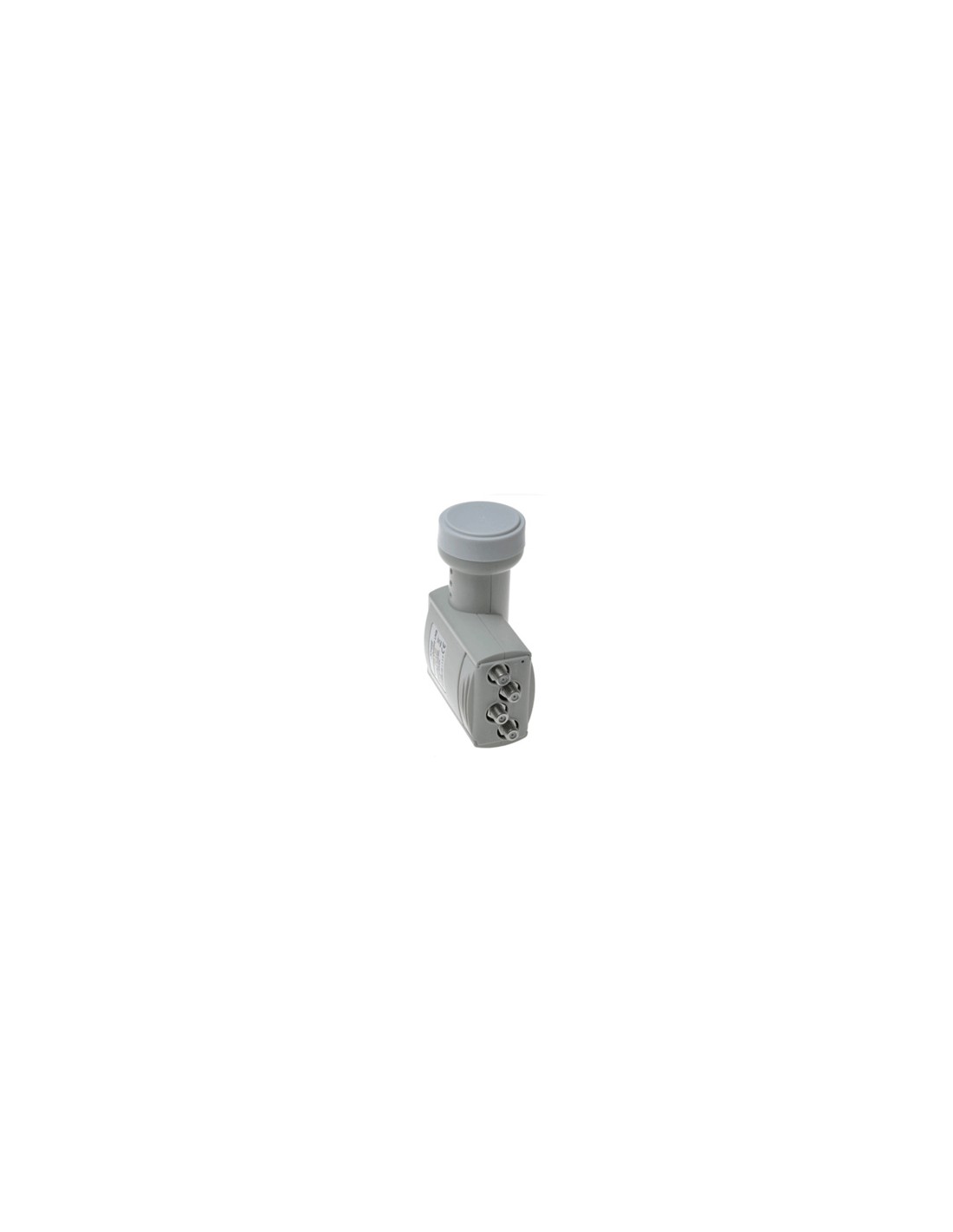

Lnb converter quad 4 decoder receiver 4u 0.7 cbd

Lnb satellite antenna converter 4 outputs

- antenna type off set antennas
- input frequency band (ghz) 10.7 - 12.75
- output frequencies (mhz) 950 - 2150
- low / high band local oscillators (ghz) 9.75 / 10.60
- stability of the oscillators (mhz) / - 3
- conversion gain (db) min. 55
- phase noise (dbc / hz) low band 1-10-100 khz
- phase noise (dbc / hz) high band 1-10-100 khz
- output impedance (o) 75
- power supply 13 - 18 vdc / 0-22 khz
- consumption (ma) max. 190
- number of exits 4
- output connectors f
- noise figure (db) 0.3


- nb the photo is indicative
