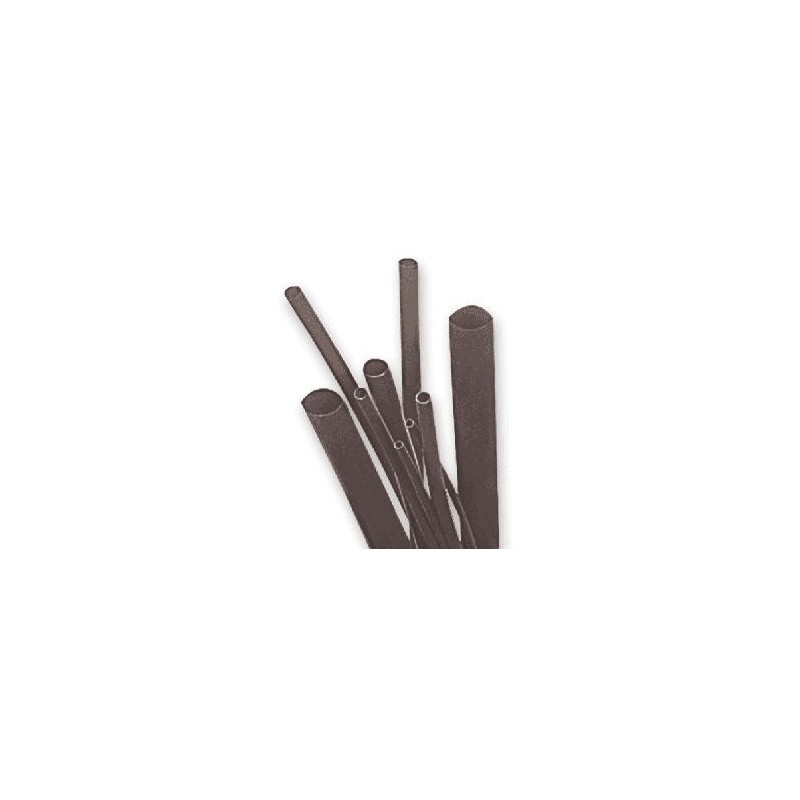

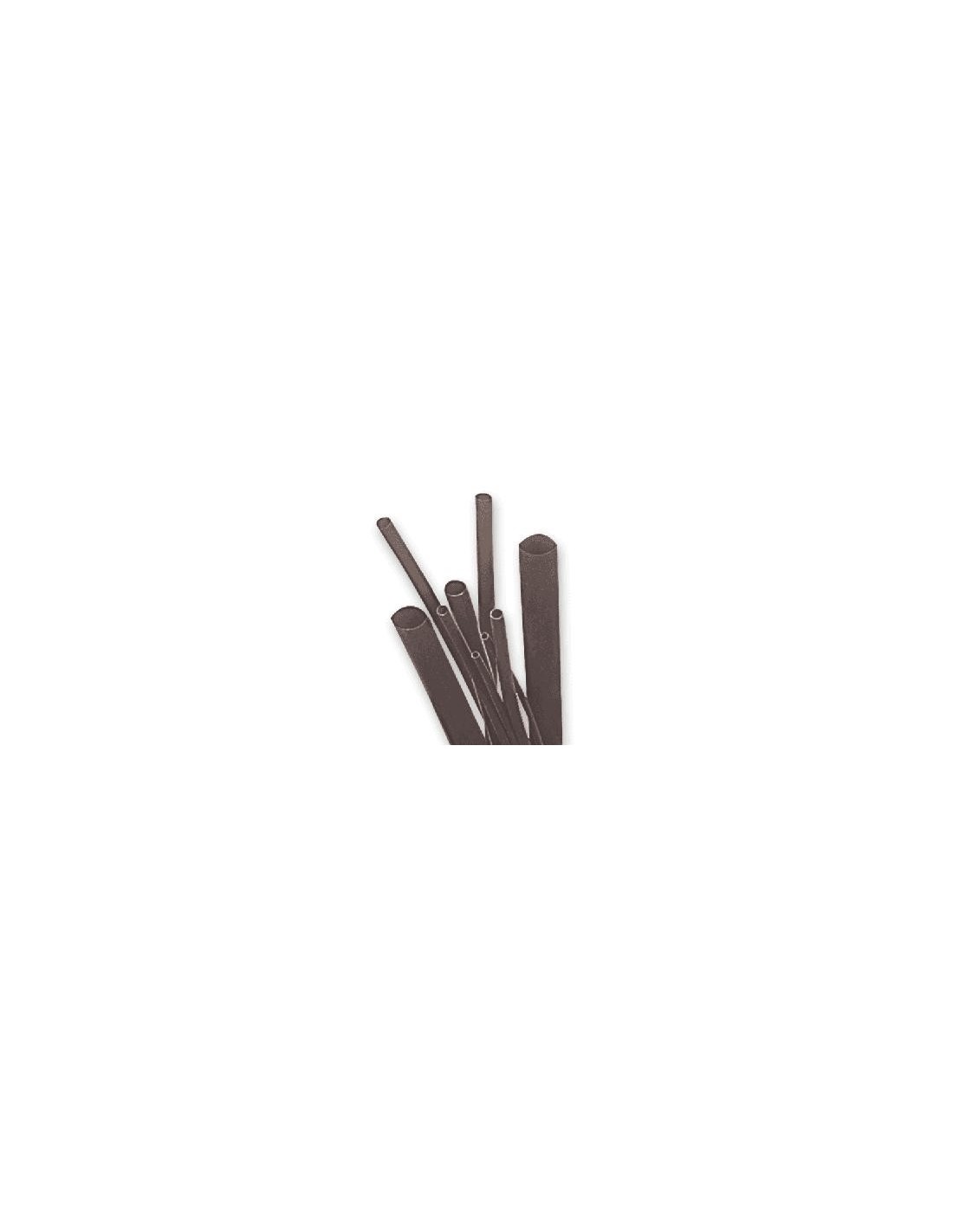

Black heat shrink tubing dcs55 25.4 - 12.7 roll of 30 meters

Thin thickness heat shrink tubing

ecological, flexible, flame retardant,
2: 1 shrinking ratio

features and applications

dcs 55
complies with ul224 and csa c 22.2 standards. »free of environmentally harmful substances such as pbb, pbbo, pbbe and toxic heavy metals; in case of combustion it does not generate dioxin.
»widely used in the electronics, telecommunications and automotive fields, thanks to its properties such as low shrink temperature, flexibility and high mechanical strength.

»compliance: 125 ° c vw-1 600v rohs
»minimum shrinkage temperature 70 ° c
»minimum total shrinkage temperature: 100 ° c

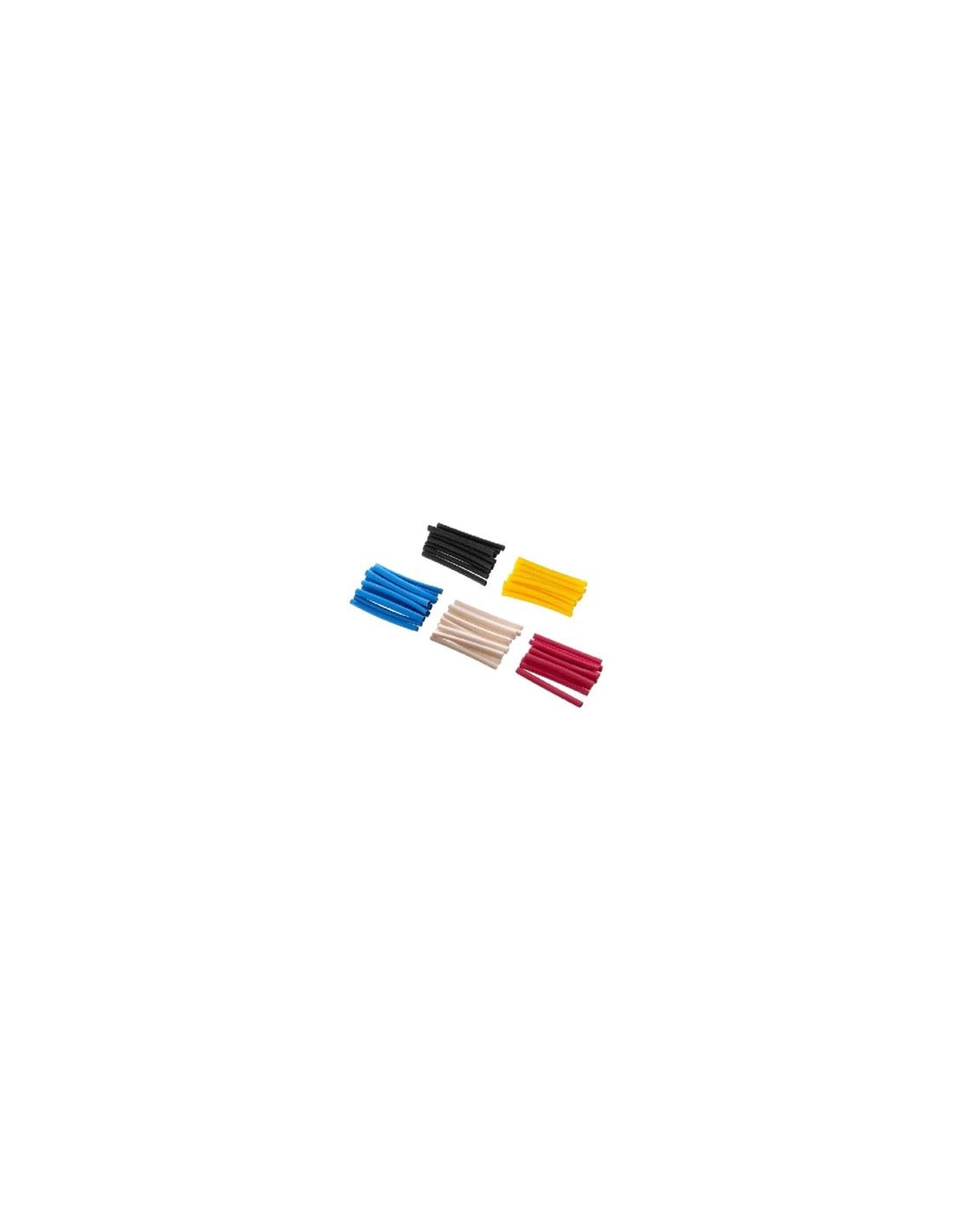

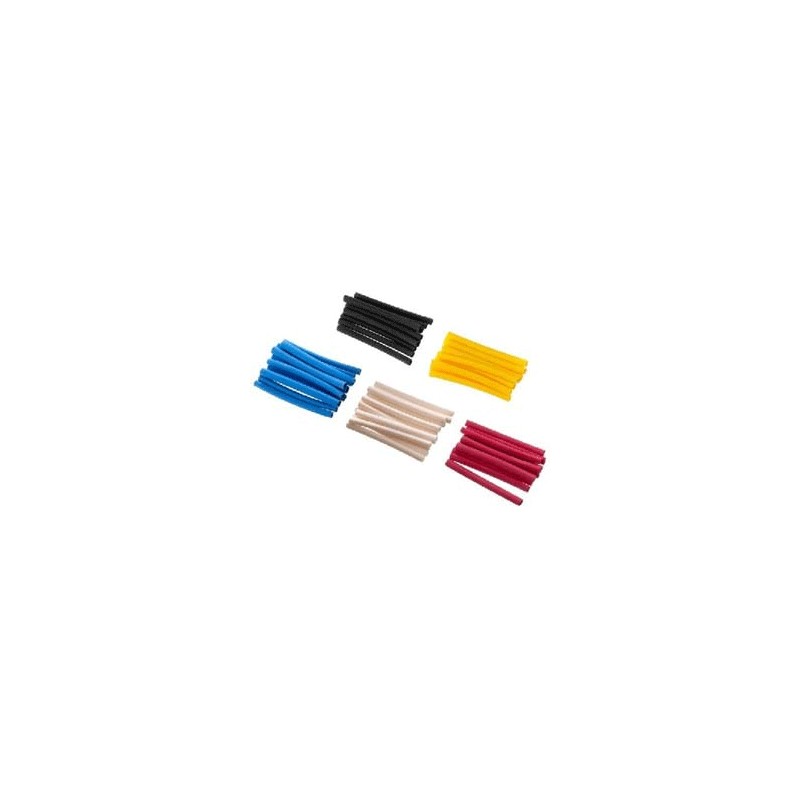

»standard colors red, blue, yellow, gray, white - on request for quantities.

»without sealant
»foldable, flexible
»excellent insulating properties
»mechanical resistance
»flame retardant and self-extinguishing
»resistant to uv rays and alkaline soil
»easily marked to reinforce bending and breaking points
»for bundling conductors

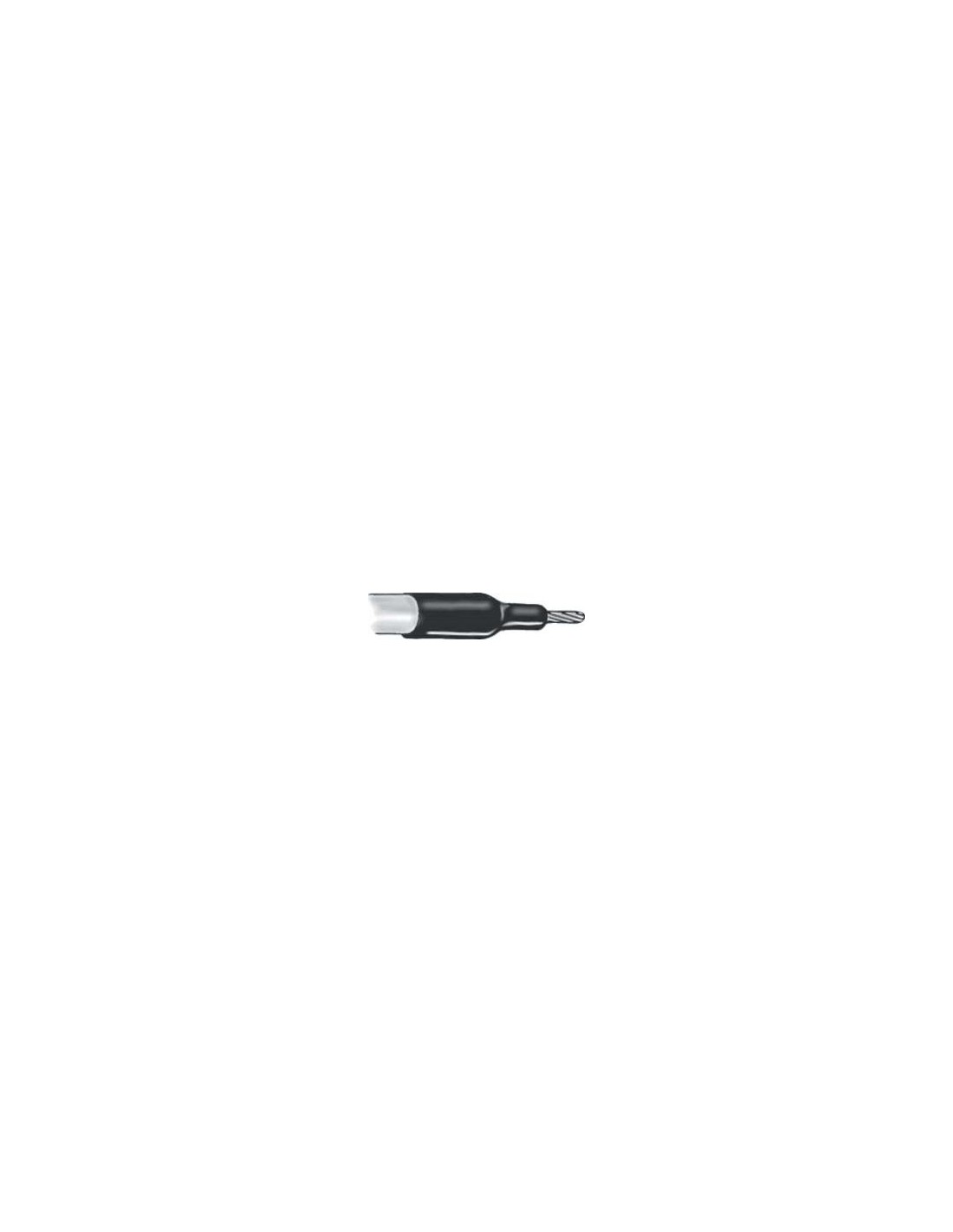

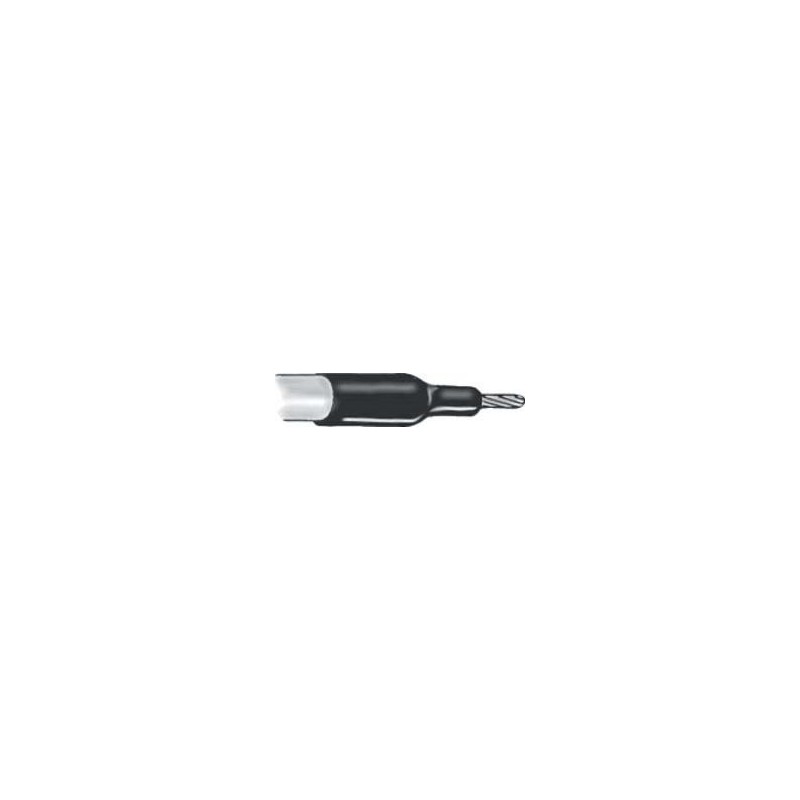

»for electrical insulation, watertight joints, encapsulation in small practical coils
»color: thin black, in rolls
shrink ratio 2: 1
»rolls of 30mt - the price refers to the 30m roll
»dimensions: expanded 25.4 - narrow 12.7 - wall thickness 0.9



data sheet
