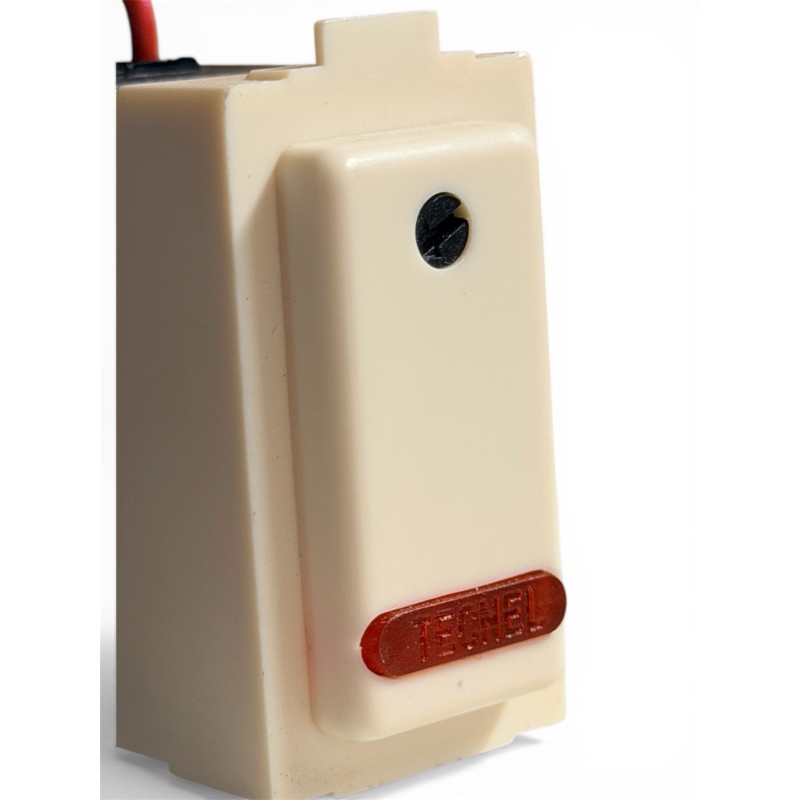

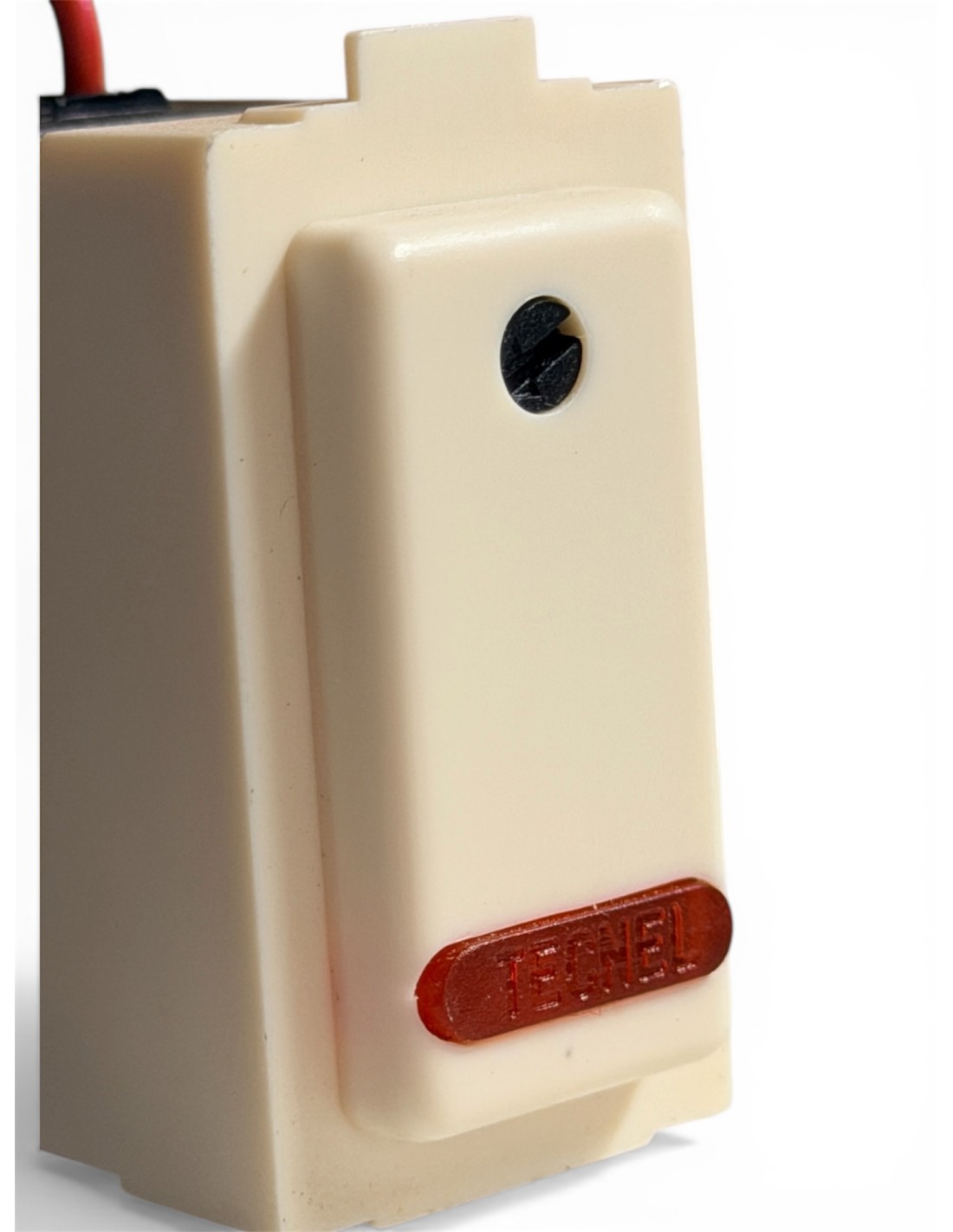

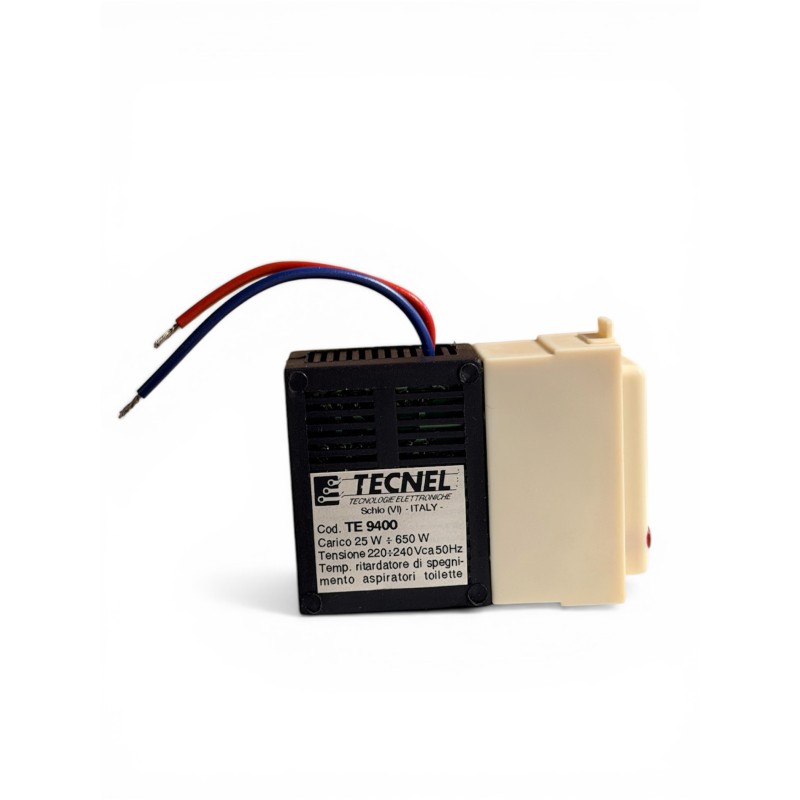

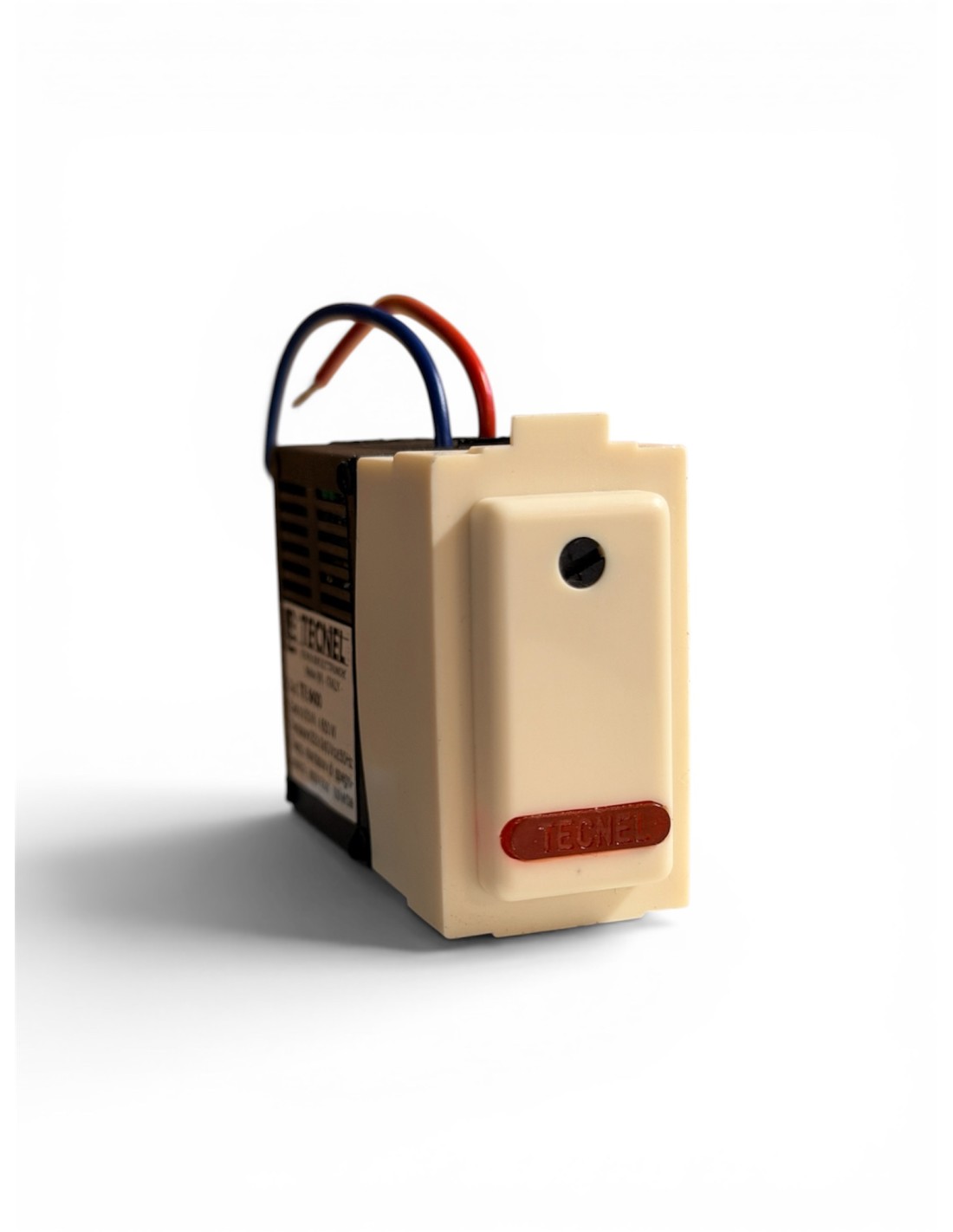

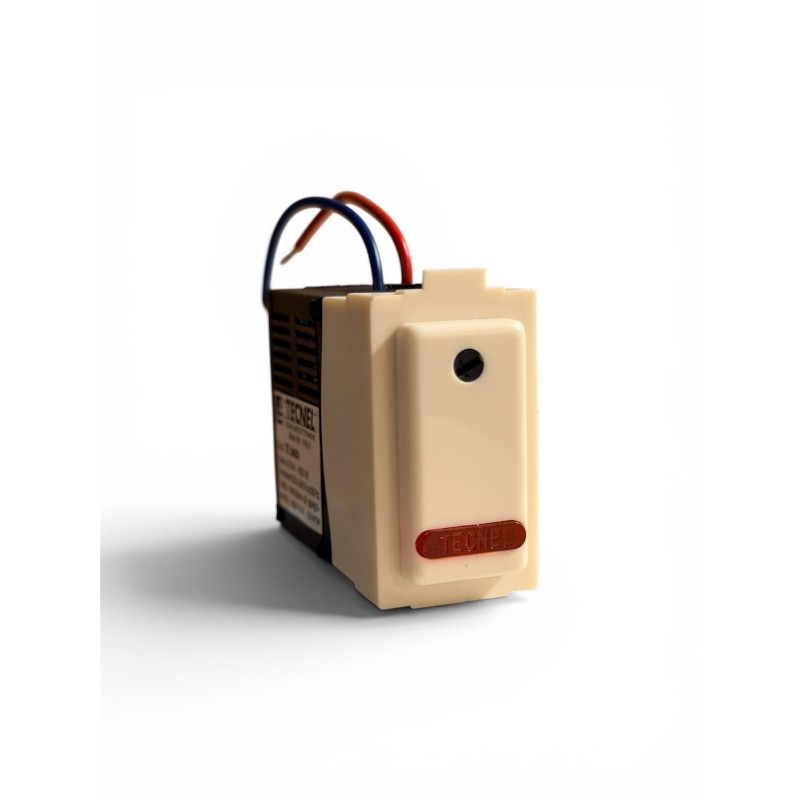

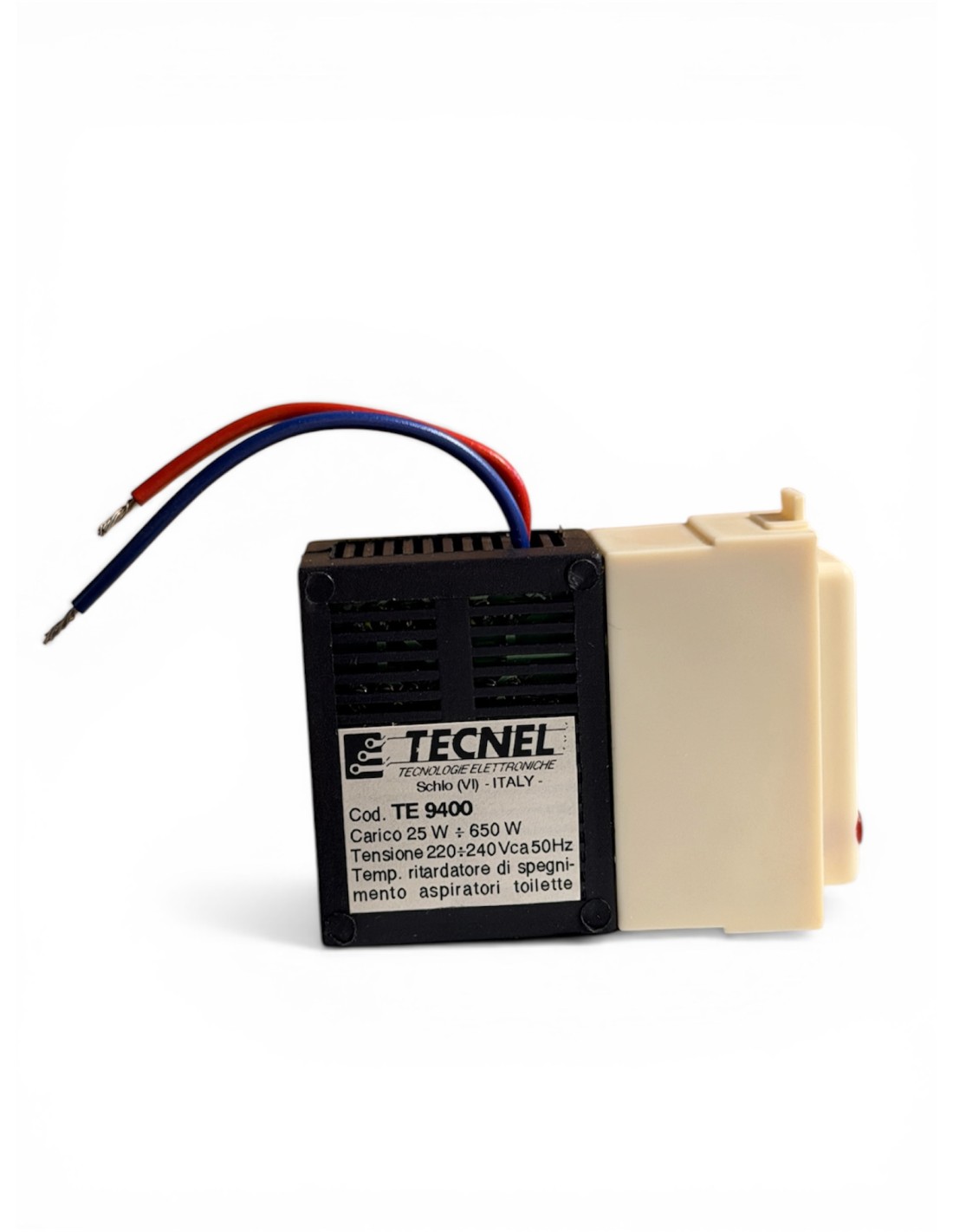

Bathroom light timer or extractor fan te9400 magic tecnel

Efficiency and Comfort in your Bticino Magic System
The Tecnel TE9400 timer is an electronic device designed to optimize energy consumption and improve home comfort. Thanks to its perfect aesthetic and mechanical compatibility with the Bticino Magic series, it can be installed directly into the original supports without the need for external adapters.
Operation and Use
The module is designed for a switch-off delay. Once the command is activated (via a standard switch or external button), the connected load is activated. When the command is deactivated, the timer begins counting and keeps the device (light or fan) on for the preset time, automatically turning it off at the end.
Main Features
·Precise Adjustment: Using an integrated trimmer on the front/side, you can set the switch-on time from a minimum of 30 seconds to a maximum of approximately 15 minutes.
·Load Compatibility: Suitable for incandescent lamps, halogen lamps and small motors (such as bathroom extractor fans).
·Technical note: For LED lamps or particular inductive loads, it is advisable to check the minimum and maximum supported power to avoid flickering.
·Simplified installation: It occupies only one module of the Bticino Magic plate.
·Tecnel Quality: Made entirely in Italy, it guarantees higher safety and durability standards than cheap imported products.
Technical Specifications
FeatureValue
Model: Tecnel TE9400
Bticino Magic Compatible Series
Power supply 230V AC, 50Hz
Adjustable timing (30 sec - 15 min)
Overall Size 1 Module
Typical application: Bathroom exhaust fans, Timed lights
