• New
Magnetic anti-theft contact roll-up overhead...

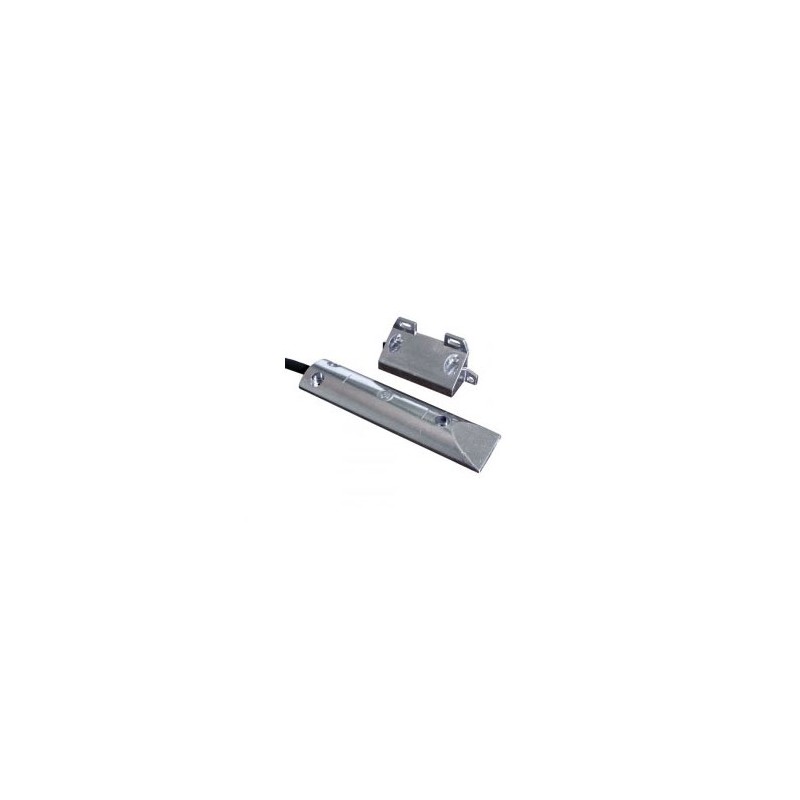

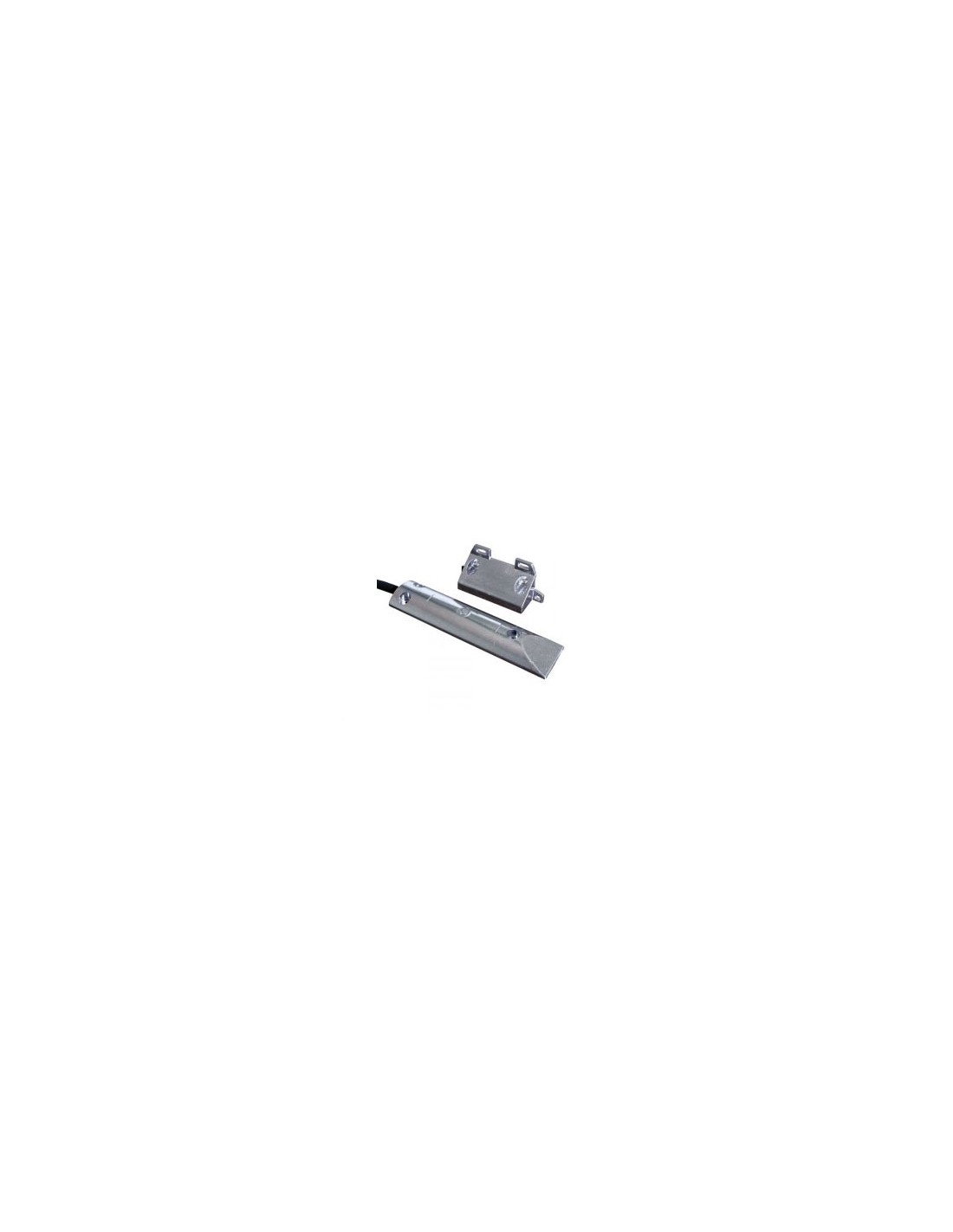

Magnetic anti-theft contact roll-up overhead doors alarm

Magnetic anti-theft contact roll-up overhead doors alarm

Magnetic aluminum contact for sliding rolling and up-and-over doors


Magnetic contact in aluminum for overhead or sliding doors. this is the new version of the 450 series contact with the following improvements:
renewed aesthetics superior operating distances fixing of the reed part with only two screws that can be protected by special plugs
metal possibility of underground cable entry magnet part with reduced vertical interaxis holes for an easier fixing on the door.

the sturdy structure of the container completely in die-cast aluminum ensures maximum resistance to the passage of the wheels
lorries forklifts etc. and makes this contact suitable for the most demanding jobs. the wide operating distances guarantee it
the operation also with doors from high games. the reed part contains a reed ampoule hermetically encapsulated with polyurethane resin
together with a tamper loop to reduce the possibility of break-in.

the connection is 4-wire (2-wire nc contact with near magnet and 2 wires for
tamper) or with 5 wires in the case of an ampoule in exchange (3 wires for ampoule contacts 2 wires for tamper) protected by a sheath with a steel core
black pvc coating.

floor fixing
great distances of
wire connection
with wire loop
anti-tampering (tamper)
with cable protection sheath
imq homologation

general specifications

housing material die-cast aluminum
operation contact reed nc output with near magnet or reed contact in exchange

type of connection wire (2 for contact 3 for changeover contact 2 for tamper)
