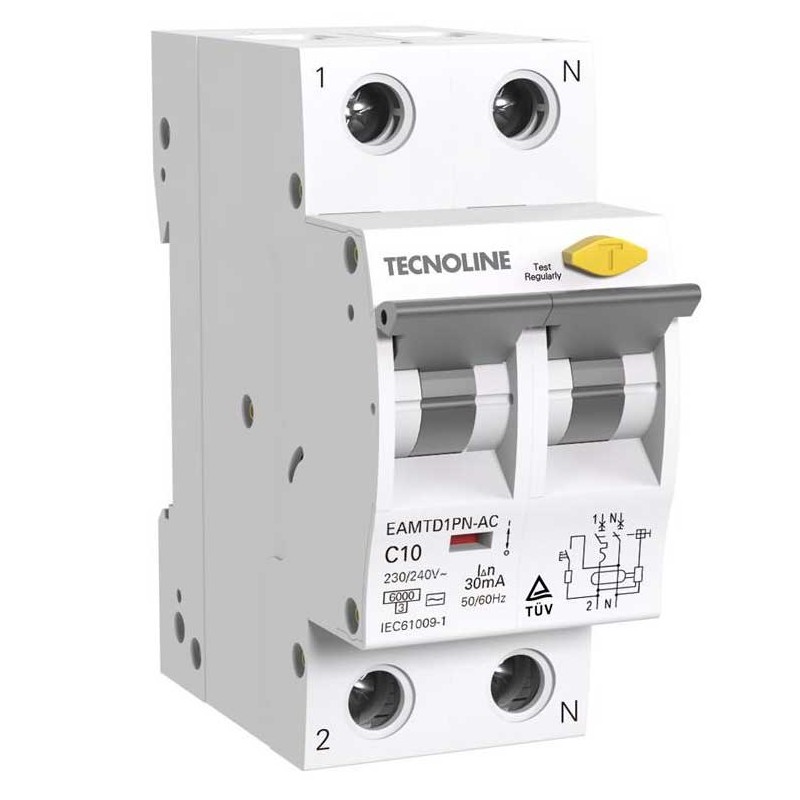

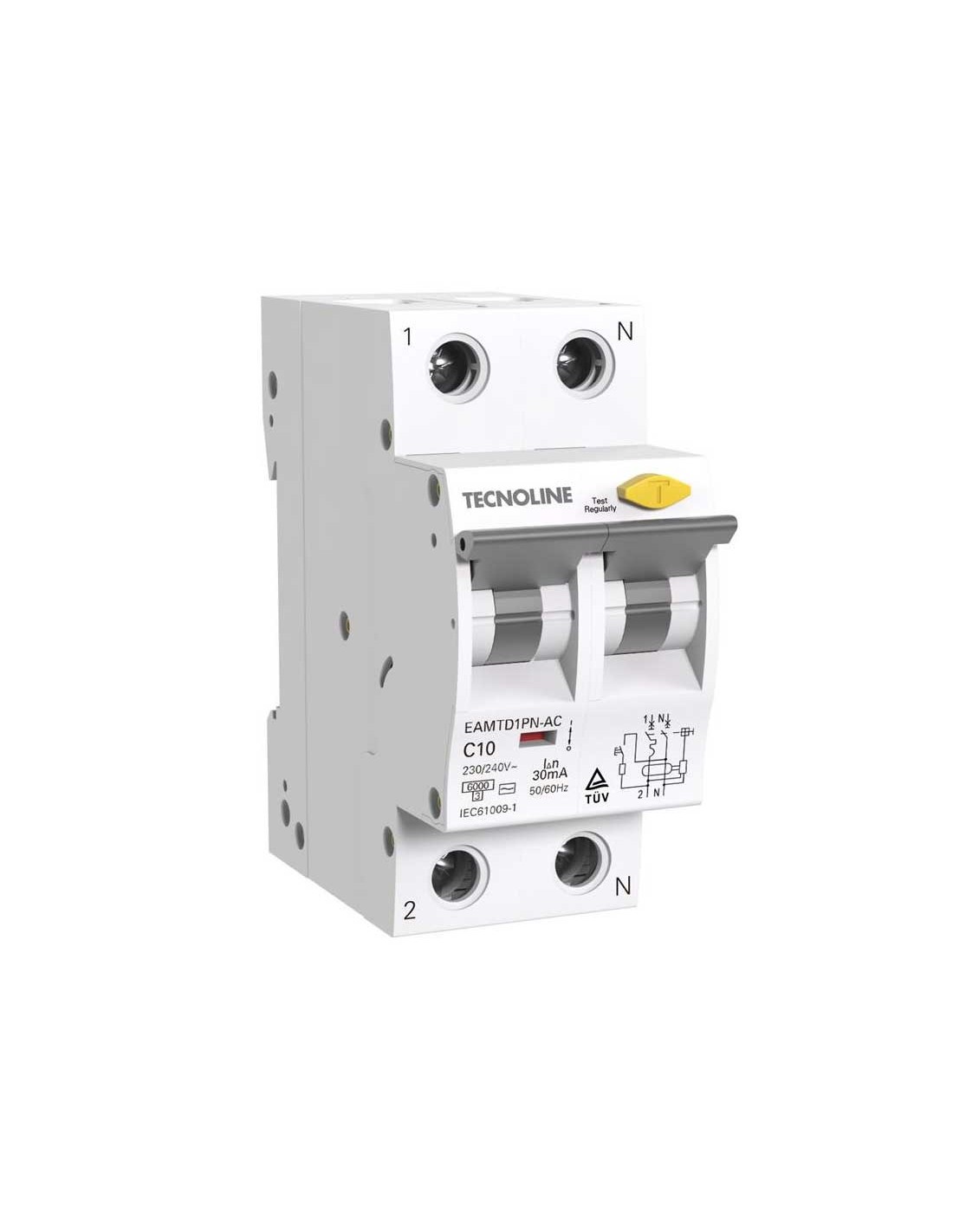

Interruttore Magnetotermico Differenziale 1P+N 10A 30mA Tipo AC 6KA
Interruttore Magnetotermico Differenziale 1P+N 10A 30mA Tipo AC 6KA

1P N 10A 30mA AC Type 6KA Differential Circuit Breaker", "detectedSourceLanguage": "it

Tecno
EAMTD1PNC1030ACK6
€19.76
Tax included
Perfect for protecting single-phase 230V lines such as: Lighting circuits (10A is the typical current) Small appliances Bathrooms and kitchens where differential protection is mandatory Lightweight socket lines Civil switchboards with little space (only 1 module) ", "detectedSourceLanguage": "it

Description

The Tecnoline 10A – 30mA differential circuit breaker – C curve – 1 module – 1P N is used to protect a domestic circuit from:1 Overloads and short circuits. The circuit breaker intervenes when the circuit absorbs too much current (over 10A) or there is a short circuit.Earth leakages. The 30mA differential circuit intervenes if there is a current leakage towards metal masses or people.It is a life-saving protection.In practice: it disconnects phase and neutral both in the event of an electrical fault and in the event of dangerous leakage.

Technical Features
- Number of poles 1 N
- Intervention curve C
- Rated voltage (Ur 240v AC
- Rated current (In 10A
- Number of modules 2M
- IP20 protection rating
- Mounting type DIN mount
- Dimensions - 83.8 x 35.6 x 78.2 mm
- Screw terminal type
- Magnetic / thermal operation", "detectedSourceLanguage": "it
