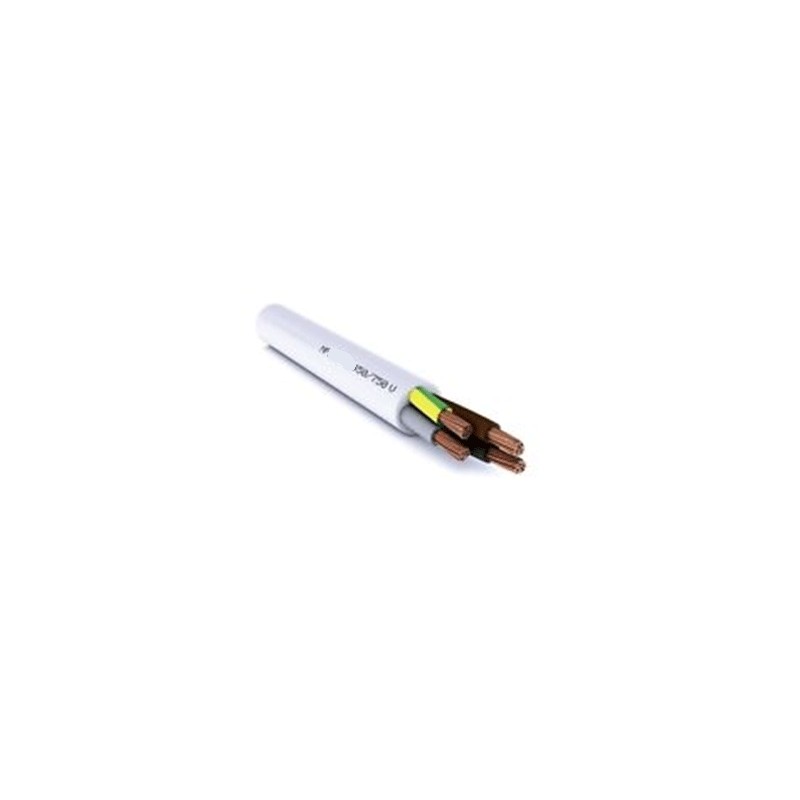

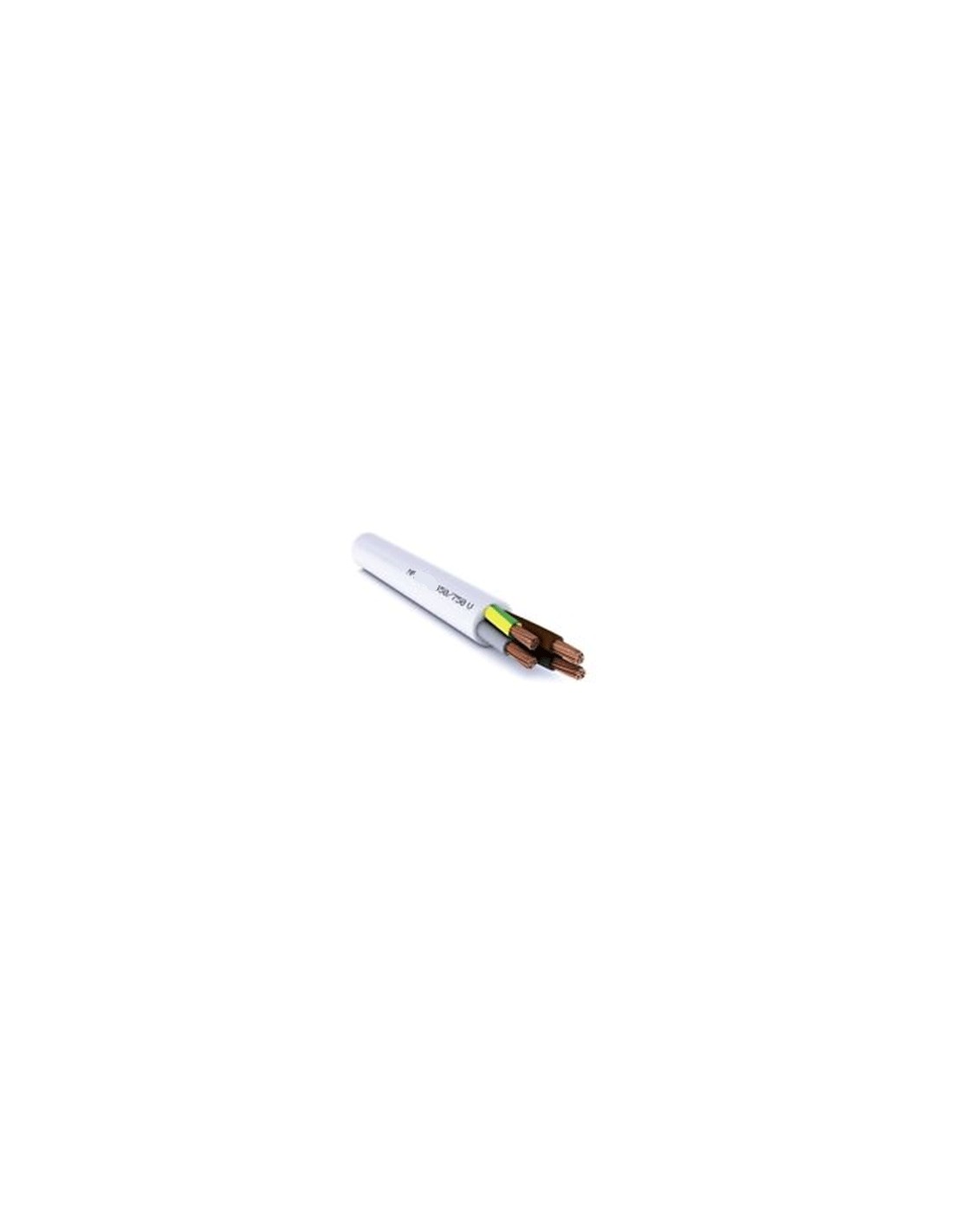

Electric button tube 4x4mmq fg16or16 icel

Button electric cutting cable fg16or16 4x4mmq

conductor: red copper flexible formation class 5
insulation: rubber g16 quality
filler: thermoplastic penetrating between the souls (only in multipolar cables)
sheath: pvc quality rz
color: grey

functional characteristics

rated voltage uo / u: 0.6 / 1 kv
maximum operating temperature: 90 ° c
maximum short circuit temperature: 250 ° c
particular characteristics
good resistance to industrial oils and greases. good behavior at low temperatures.
conditions of installation
minimum setting temperature: 0 ° c
minimum bending radius recommended: 4 times the diameter of the cable
maximum traction effort recommended: 5 kg per mm² of copper section
use and type of laying
suitable for energy transport in industry construction sites and residential buildings.
for fixing inside and outside. installation on masonry and metal structures on passerelle tubazioni canalette and systems similari.
permitted underlay although not protected. (cei 20-67)
