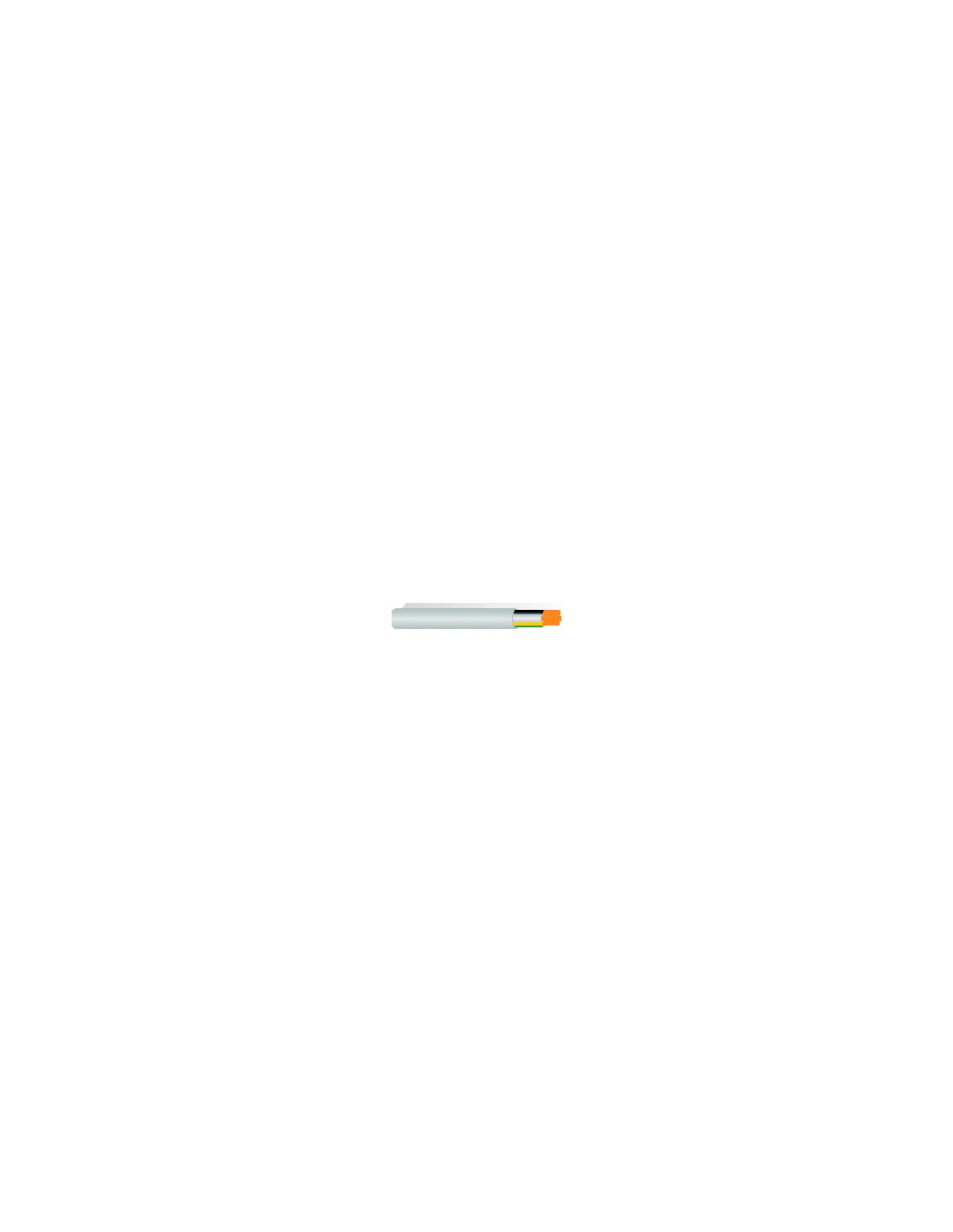

Butyl rubberized cable fg16210 2x10mmq icel

Butyl rubberized electric cable fg7 2 x 10mmq
conductor: red copper, flexible formation, class 5
insulation: rubber, quality g7
filler: thermoplastic, penetrating between the cores (only in multipolar cables)
sheath: pvc, rz quality
Color: Grey
functional characteristics
rated voltage uo / u: 0.6 / 1 kv
maximum working temperature: 90 ° c
maximum short circuit temperature: 250 ° c

particular characteristics

good resistance to industrial oils and greases. good behavior at low temperatures.
laying conditions
minimum installation temperature: 0 ° c
minimum recommended bending radius: 4 times the diameter of the cable

maximum recommended tensile stress: 5 kg per mm² of copper section
use and type of installation
suitable for the transport of energy in industry, construction sites, residential buildings.
for fixed installation indoors and outdoors. installation on walls and metal structures, on walkways, pipes, channels and similar systems.
underground installation is allowed, even if not protected. (cei 20-67)

- Section 2x10mmq
- Butyl
