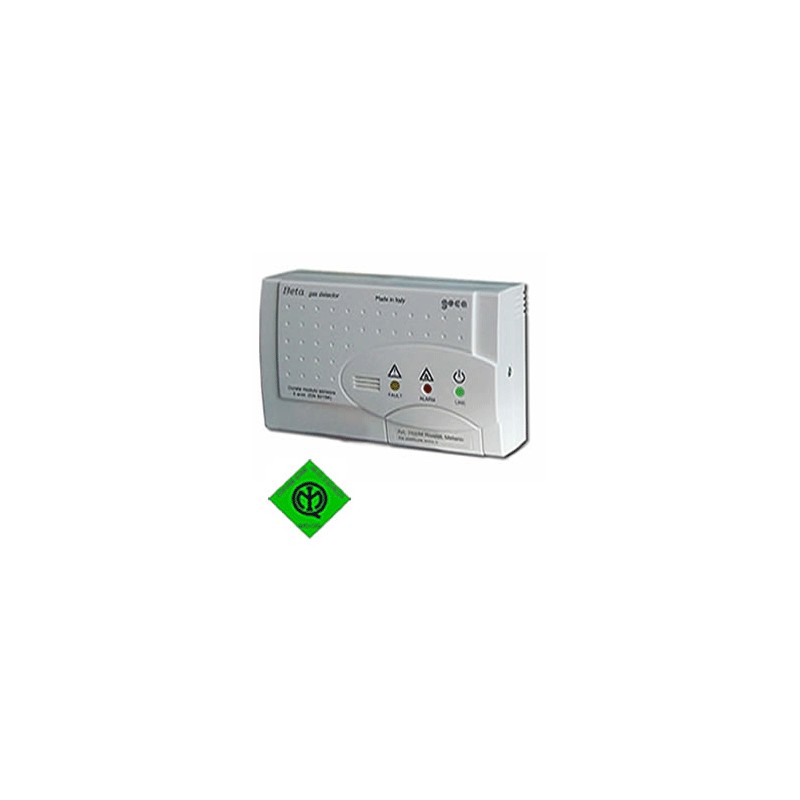

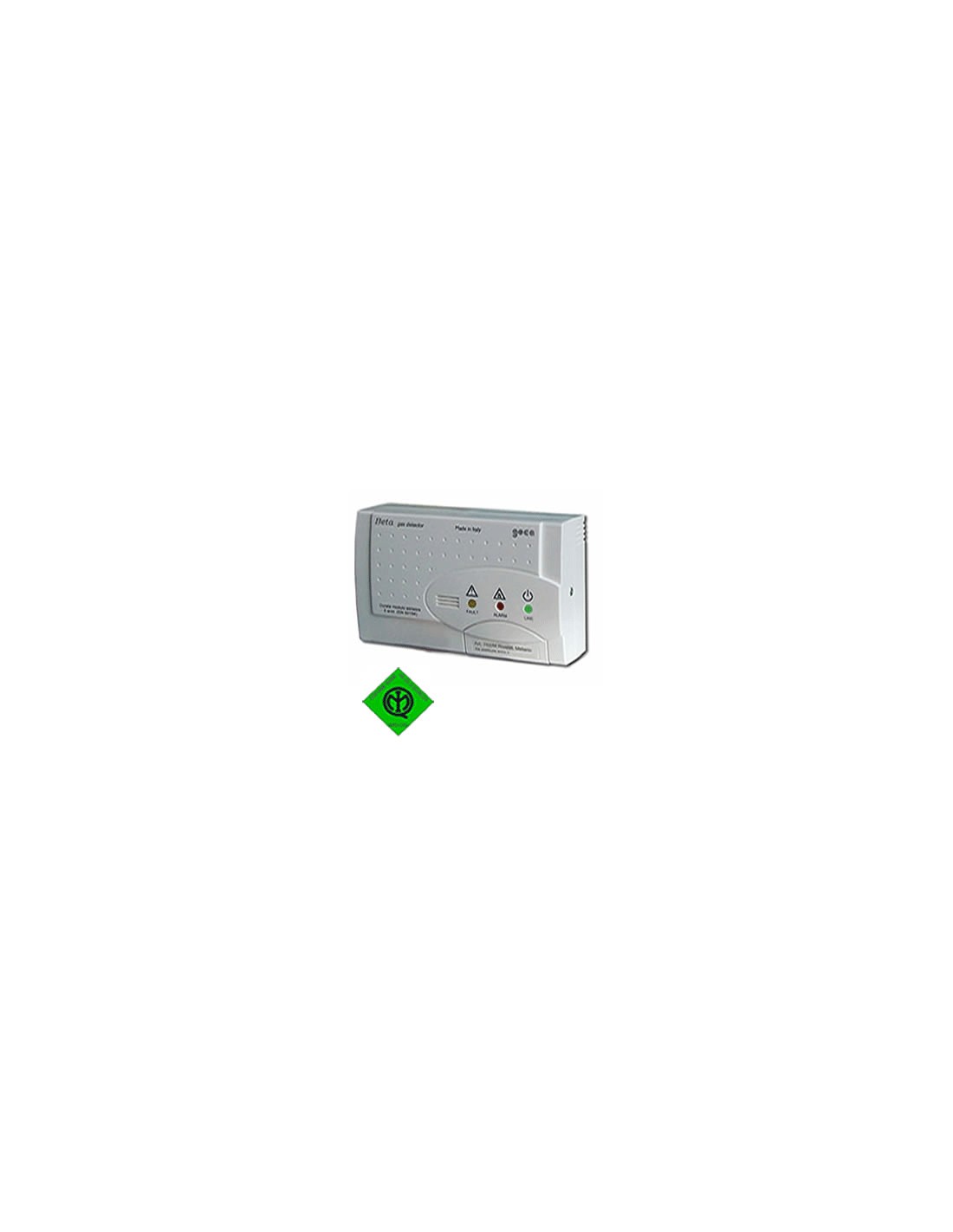

Metal gas leak detector certified imq
the methane gas detector when a methane gas leak is detected
warns by means of an optical signal sensor for gas leaks
and acoustic of the presence of gas in the environment in is installed.
- red cottage gas
wall gas alarm.
gas leakage control unit with sensor.
where to place carbon monoxide detector. where there is a source of methane gas there is gas alarm.
- gas leak detector.
- gas leak symptoms aerating the environment.
all our gas detectors they are equipped with a relay output for controlling a gas shut-off solenoid valve.
in the methane and lpg versions they are calibrated to detect a gas concentration equal to 10% of the l.i.e. (lower explosion limit).
competitive gas detector price.
home gas detector.
this threshold may vary according to environmental conditions but in any case it will not exceed 20% of the l.i.e. during the first 5 years of operation.
methane gas sensors.
in the co versions they are calibrated to detect the following concentrations: 50 ppm for 70 minutes / 100 ppm for 20 minutes / 300 ppm for one minute.
these thresholds are guaranteed for a maximum period of 5 years.
at the expiry of the prescribed period an optical signal warns of the need to replace the sensor which can be performed simply by removing a door and using the spare sensors supplied in blisters.
technical features:
- power supply: 230 vac - 50 to 60 hz
- absorption: 20ma max at 230vac
- alarm threshold: 10% of the l.i.e.
- sensor: catalytic
- alarm: optical (red led) and acoustic (internal buzzer 85dba at 1 m)
- degree of protection: ip42
- compliance with standards: en 50194
- white color
- methane gas
wholesale online electrical distributor. brothers of the plan
technical sheet
