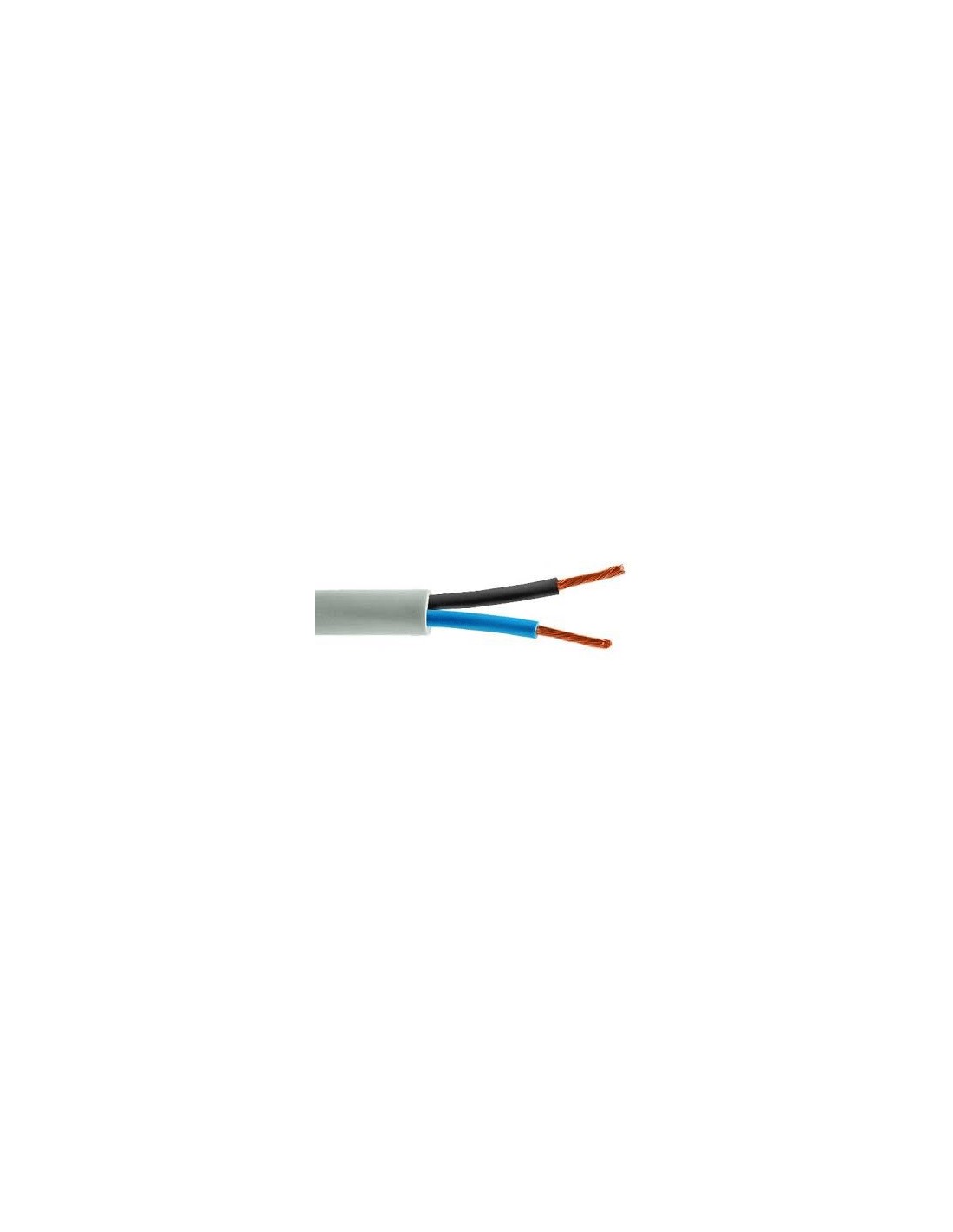

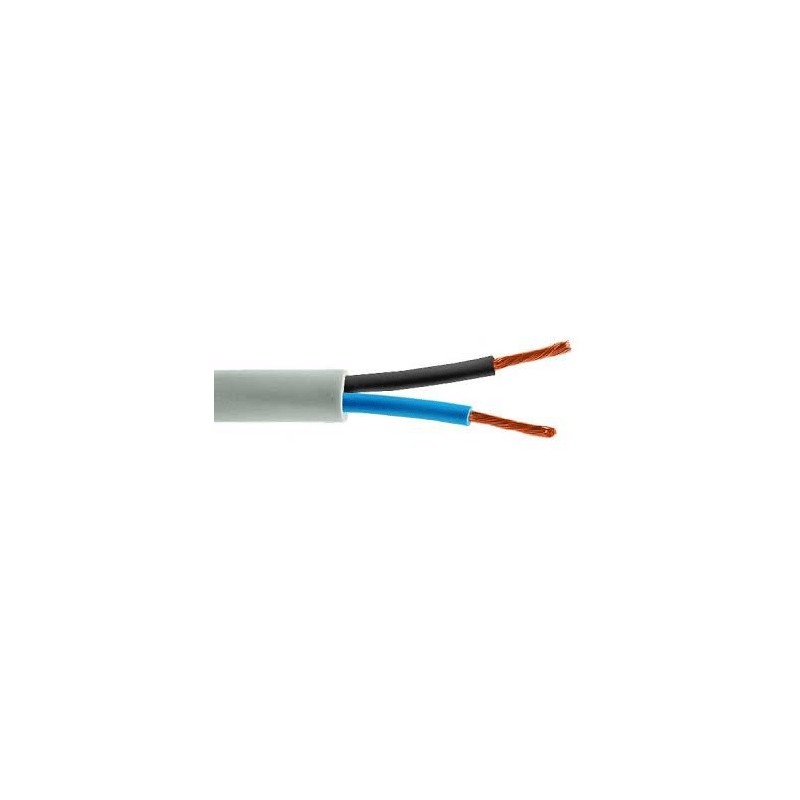

Electric rubber cable 2x1mmq brown fs18or18 icel conduit

Multipolar electric cable npi fror
- 450/750 v
for fire retardant mobile laying and reduced halogen emissions (corrosive gases), pvc insulated under pvc sheath, with flexible red copper conductor imq-cpt-007, cei 20-20 / 1, cei 20-20 /2,
- cei 20-22 ii, cei en 50267-2-1,
- cei en 50265-2-1, cei 20-52
- conductor: red copper, flexible formation, class 5 npi fror - 450/750 v
insulation: pvc, ti2 quality
- sheath: pvc, tm2 quality
- color: grey.
- npi® = fire retardant
functional characteristics
- rated voltage uo / u: 450/750 v
- maximum working temperature: 70 ° c
- maximum short circuit temperature: 160 ° c
particular characteristics
- good resistance to mechanical stress and chemical agents.
- good flexibility and behavior at low temperatures.
- installation conditions
- minimum installation temperature: 0 ° c
- recommended minimum bending radius: 10 times the diameter of the cable for mobile laying, 4 times for fixed laying.
- maximum recommended tensile stress: 1.5 kg per mm² of copper section for mobile installation, 5 kg per mm² for fixed installation
- use and type of installation
- installation for mobile and fixed installation in places with fire hazard such as fairs, residential buildings, industry and crafts.

- they can be installed indoors, in normal or humid environments and temporarily outdoors.

- 100mt skein
- brown color
- section 2x1 mmq
