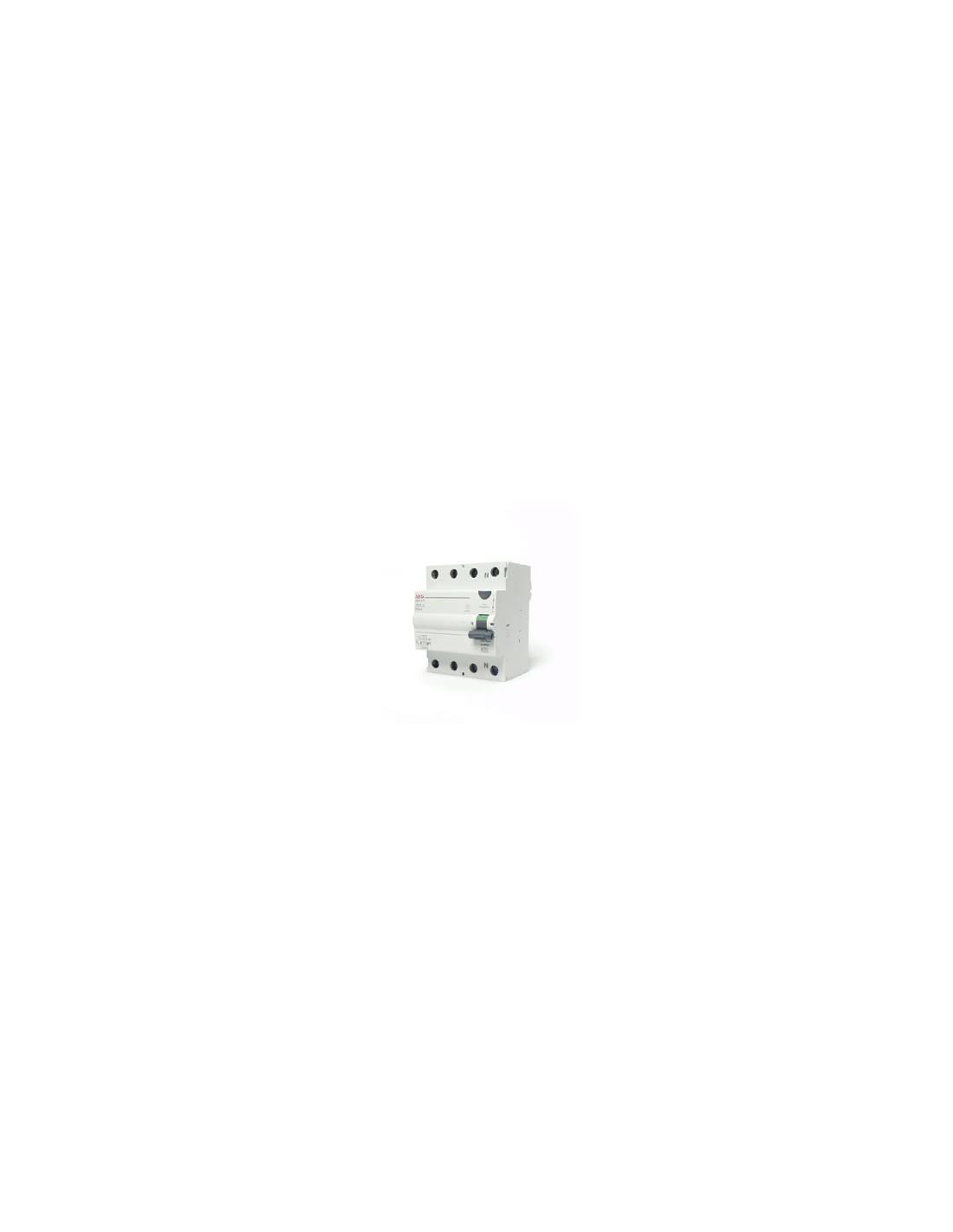

Pure differential switch 4p 63a 30ma ac efi63/030-4 aeg

Pure 63a 4p 30ma ac differential switch ac efi63 / 030-4 aeg
the fundamental thing to check in any home, offices or shops etc. to eliminate the circuit breakers with fuses and to install the circuit breaker differential that allows to give a greater security in these places with their sensitivity is a protection by interrupting the flow of electric current in a circuit in the event of overvoltages without even burden the plant.
it replaces the old lever switches with fuses with one more advantage with great intervention precision. easy to restore only by pressing the lever on the forward side of the aeg automatic switch.

life-saving general electrical system for lines.


technical features
- rated current in (a) 63
- intervention threshold (ma) 30
- ac class
- number of poles 4
- en 61008 standard
- number of modules 4
- power loss (w) 15.45
- nominal voltage ac (v) 230/400
- operating voltage min-max ac (v) 180/455
- frequency (hz) 50/60
- closing and interrupting power differential. idm (a) 500
- current condiz. of short-circuit differential. idc (a) 10000
- suitable for sectioning according to en 60947-2 no
- operating temperature (° c) -5 / + 60
- storage temperature (° c) -25 / + 70
- kema approvals
- reference temperature (° c) 30
